Tommy Gate 2500 & 3000 High-Cycle Railgate Series Parts

For Models 85, 89 and 95

(With Internal Timed Electric Toggle Control)

Please provide the liftgate Model and Serial numbers when ordering repair parts

Tommy Gate Parts Diagram

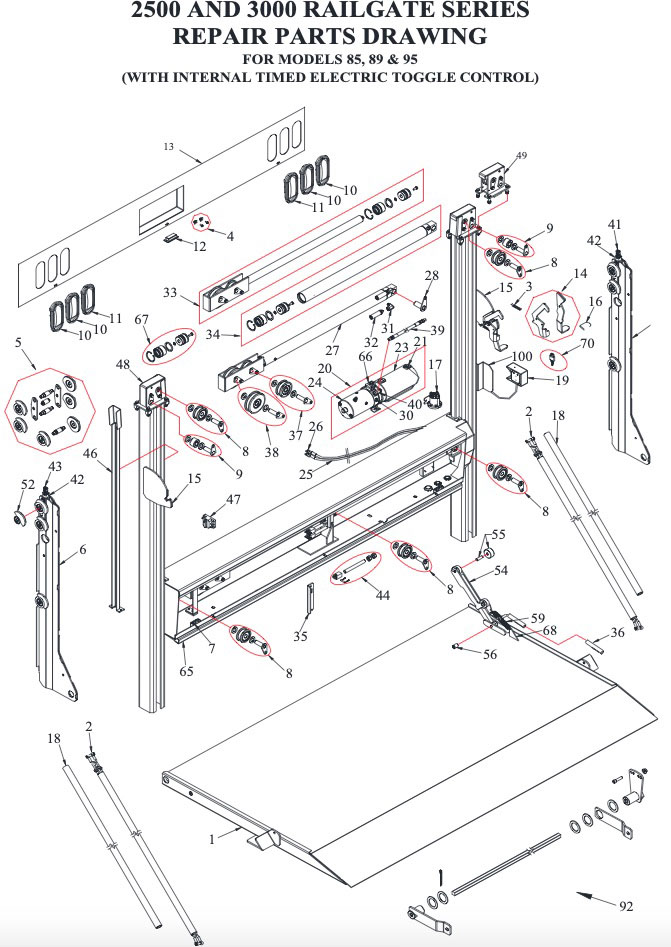

High Cycle Parts Diagram
2 011768 Rail (50+12 & Below) Replacement Platform Chain (37 Links) 2
  011769 Rail (55+12 & Above) Replacement Platform Chain (47 Links) 2
3 000931 Replacement Rail Latch Spring 1
4 001111 License Plate Mount Kit 1
5 011772 Replacement Slider Wheel Set 2
6 011770 Replacement Slider 2
7 000930 Replacement Rail Safety Switch 2
8 011773 Replacement 3.00 OD Pulley, Pin & Keeper 5
9 011774 Replacement Idler Pulley, Pin & Keeper 2
10 000928 Replacement Red Light w/Grommet 4
11 000926 Replacement Clear Light w/Grommet 2
12 010199 Replacement License Plate Light & Bracket (H1) 1
13 011777 Replacement Steel Box Cover w/Lights (85) 1
  011778 Replacement Steel Box Cover w/Lights (89) 1
  011779 Replacement Steel Box Cover w/Lights (95) 1

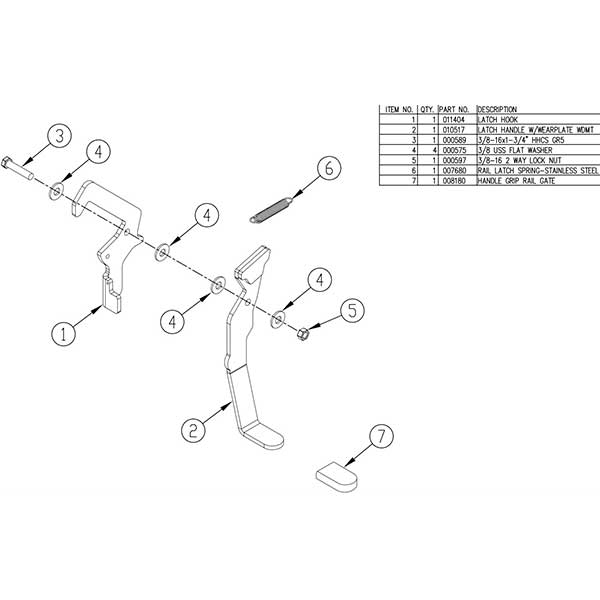

14 011806 Replacement Railgate Latch Lever 1
15 011791 Replacement Steel Latch Plate-Right 1
  011792 Replacement Steel Latch Plate-Left 1
16 011793 Replacement Latch Lever Handle Grip 1
17 000967 Replacement Raise Solenoid-3 Post 1
18 006597 Replacement Cloth Chain Cover 46" 2
  011807 Replacement Cloth Chain Cover 58" 2
19 000987 Replacement Fixed Control 1
  013559 Replacement Compact Fixed Control (after approx. 9/25/15 SN00584653) 1
20 011780 Replacement Pump & Motor (3600psi) 3qt.** 2500# Railgate 1
  011781 Replacement Pump & Motor (3800psi) 3qt.** 3000# Railgate 1
21 000989 Replacement Vent Plug 1
22 N/A Replacement Pump (only) w/3qt. Tank (3600psi) 2500# Railgate (Discontinued - See Drawing Ref 20)   1
  N/A Replacement Pump (only) w/3qt. Tank (3800psi) 3000# Railgate (Discontinued - See Drawing Ref 20)   1
23 004355 Replacement Plastic Tank (3qt.)** 1
24 000958 Replacement 12 Volt Motor-Only** 1
25 011803 Replacement 2 Ga. 2 Wire Electric Cable w/Lugs-33 ft. 1
26 000992 Replacement Copper Lug 6
27 011786 Replacement Cylinder (25-30) Railgate  1
28 011790 Replacement Rail Cylinder Pin & Keeper 1
30 000973 Replacement Check Valve 1
31 012607 Replacement 9/16x9/16x90 Degree Steel Cylinder Elbow 1
32 012966 Replacement 9/16" x 7/16" Flow Control 1
33 011787 Cylinder Shaft w/Pulleys Assembly (Rail) Includes: Cylinder Repair Kit 1
34 011788 2"x35" Replacement Cylinder Barrel (25-30 Rail) Includes: Cylinder Repair Kit 1
35 011789 Replacement Cylinder Clamp (Rail) 1
36 011805 Replacement Self-Close Handle Grip 1
37 011775 Replacement 3.50 OD Pulley, Pin & Keeper 1
38 011776 Replacement 4.72 OD Pulley, Pin & Keeper 1
39 012609 Replacement 1/4"x20" Hydraulic Hose 1
40 012611 Replacement 90 Degree Elbow 9/16 x 7/16 1
41 011795 Replacement Leaf Chain 265 Pitch - Passenger's Side (BH) 1
  011797 Replacement Leaf Chain 291 Pitch - Passenger's Side (AB) 1
42 011794 Replacement Leaf Chain Attachment Fitting 2
43 011796
Replacement Leaf Chain 285 Pitch - Driver's Side (85) (BH)
1
  011797 Replacement Leaf Chain 291 Pitch - Driver's Side (89) (BH) 1
  011798 Replacement Leaf Chain 301 Pitch - Driver's Side (95) (BH) 1
  013370 Replacement Leaf Chain 327 Pitch - Driver's Side (AB) 1
44 011799 Leaf Chain Adjustment Screw, Clevis & Pin 2
46 011800 Replacement Rail Chain Cover BH 2
  014530 Replacement Rail Chain Cover AB 2
47 011804 Replacement 200 Amp Manual Reset Circuit Breaker 1
48 011801 Replacement Steel Upper Pulley Assembly Left 1
49 011802 Replacement Steel Upper Pulley Assembly Right 1
52 011771 Replacement Slider Wheel 1
54 011822 Replacement Self-Close Arm w/Hardware (Steel) 1
  011824 Replacement Self-Close Arm w/Hardware (Alum) 1
55 008138 Replacement Self-Close 2" Roller Kit 2
56 008067 Repair Self-Close Arm Bushing Kit-Steel Platform    2
  008068 Repair Self-Close Arm Bushing Kit-Aluminum Platform    2
59 000922 Replacement 0.142"x1.125"x5.5" Extension Spring (Rail) 2
65 008171 (85) Replacement Safety Trip Bar-77-1/2" 1
  008172 (89) Replacement Safety Trip Bar-81-1/2" 1
  008173 (95) Replacement Safety Trip Bar-87-1/2" 1
66 009645 Release Solenoid External Assembly w/Connector 1
67 011785 2" Cylinder Repair Kit (25-30 Rail) 1
68 000920 Replacement Steel Platform Triangle Deadman 2

000921 Replacement Aluminum Platform Triangle Deadman 2
70 000966 Padlock w/Keys 1

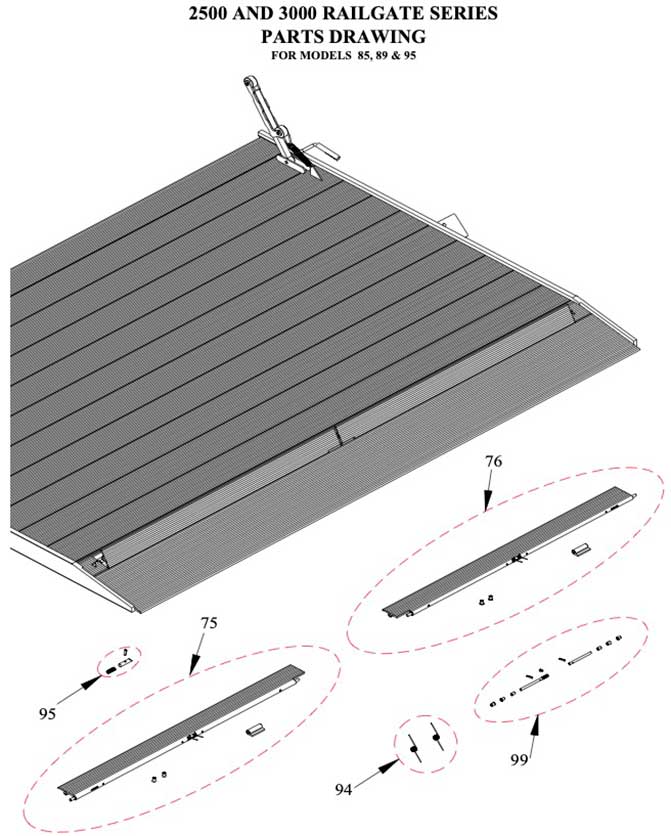

75 013570 Replacement Left Cartstop Assembly (85) w/Spring  (in taper)    1

013571 Replacement Left Cartstop Assembly (89) w/Spring (in taper)    1
  013572 Replacement Left Cartstop Assembly (95) w/Spring (in taper)   1
76 013575 Replacement Right Cartstop Assembly (85) w/Spring  (in taper)    1
  013576 Replacement Right Cartstop Assembly (89) w/Spring (in taper)    1
  013577 Replacement Right Cartstop Assembly (95) w/Spring (in taper)   1
92 011809 1/2"SQ. Torsion Spring Kit (85Rail) 1
  011810 1/2"SQ. Torsion Spring Kit (89Rail) 1
  011811 1/2"SQ. Torsion Spring Kit (95Rail) 1
  011812 5/8"SQ. Torsion Spring Kit (85Rail) 1
  011813 5/8"SQ. Torsion Spring Kit (89Rail) 1
  011814 5/8"SQ. Torsion Spring Kit (95Rail) 1
94 013566 Repair Cartstop Torsion Spring Kit (in taper) 1
  014542 Removable Cart Stop Torsion Spring Kit 2
95 014544 Replacement Cartstop Latch Kit   2
99 014543 Removable Cart Stop Replacement Hinge Kit 2
100 015179 Replacement CTC Mounting Bracket and Shield 1
