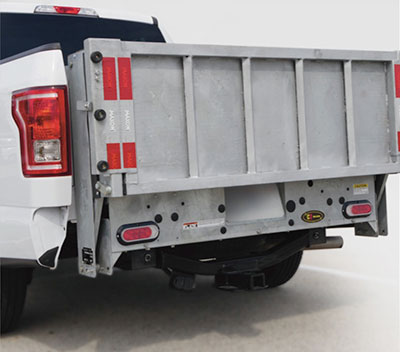

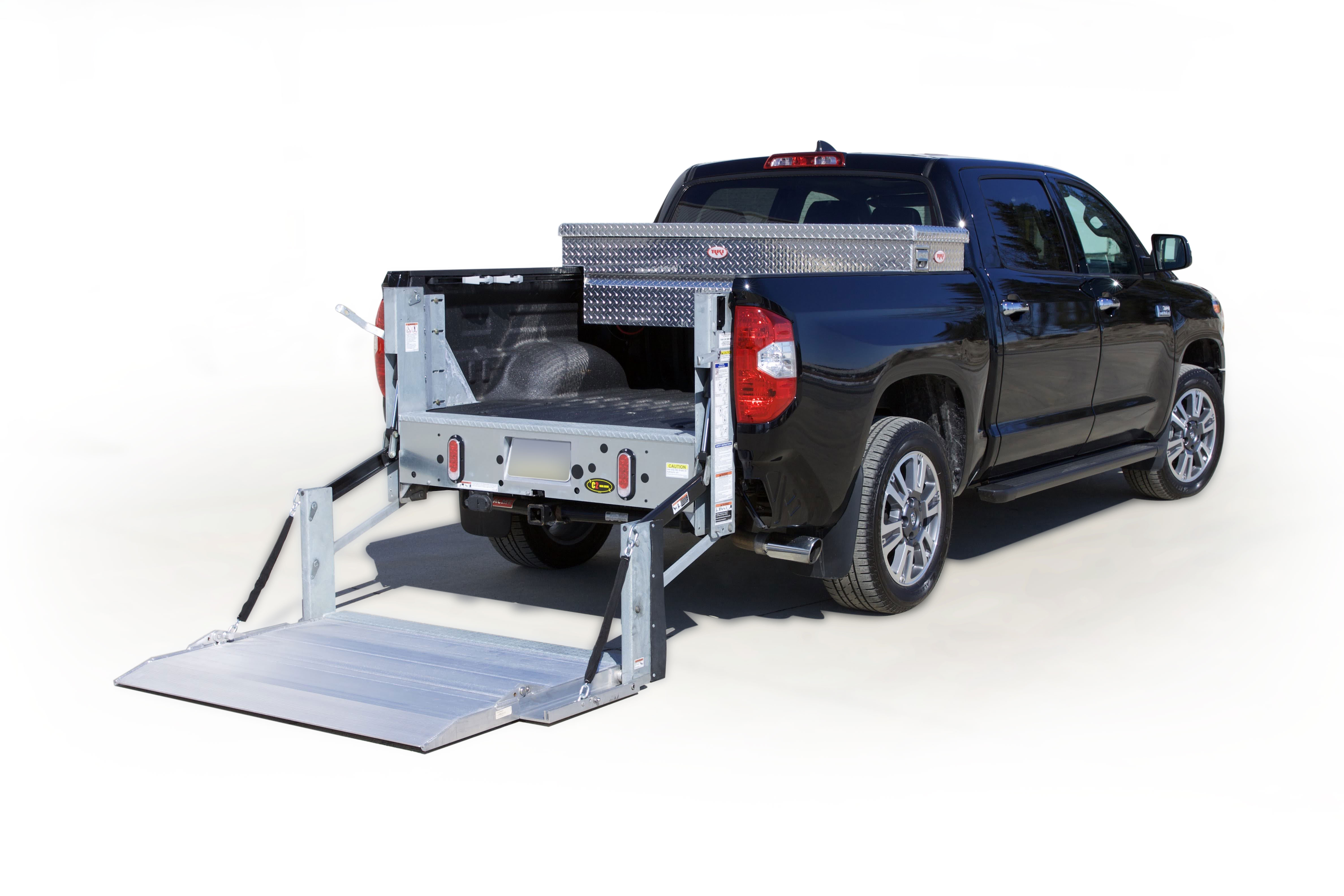

Maxon C2 Pickup
Maxon C2 Pickup
C2 is just like the liftgates you know, but at significantly reduced cost.
The C2 provides direct lifting with level ride and ramp options that increase loadable platform depth.
High Performance, Low Maintenance
All of Maxon's C2 liftgates are built with high performance and low maintenance in mind. An oversized, fully enclosed pump and motor assembly helps ensure increased life and less potential for downtime, while maintenance-free, grease-free bearings reduce the need for service. A timed toggle control prevents unauthorized use, automatically deactivating 90 seconds after operation.
Direct Lift, Level Ride
C2 lifts provide direct lift with level ride, with ramp options that increase loadable platform depth, as well as the option for steel or aluminum platforms.
KEY FEATURES:
Dual hydraulic lifting cylinders
Maintenance-free components
Protected / recessed main control with time-out features
Steel or aluminum platforms
Fully-enclosed hydraulic system

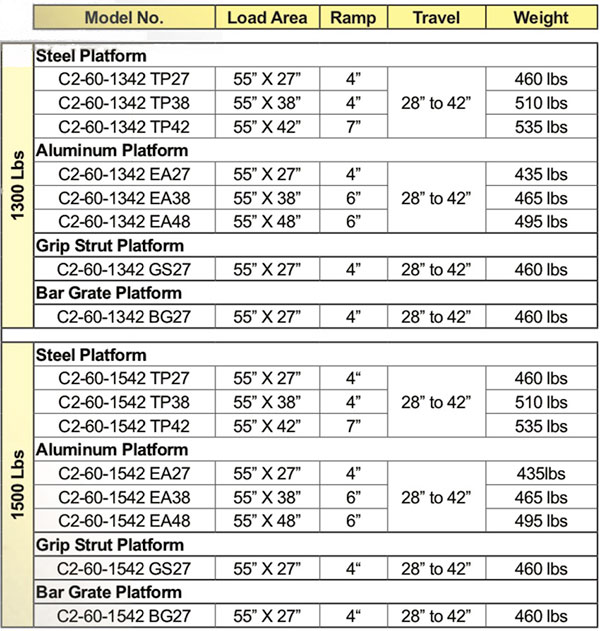

C2 Liftgate 1300lbs Steel Platform
- Load Area 55” X 27”
- Ramp 4”
- Bed Height 28” to 42”
C2 Liftgate 1300lbs Steel Platform
- Load Area 55” X 38”
- Ramp 4”
- Bed Height 28” to 42”
C2 Liftgate 1300lbs Steel Platform
- Load Area 55” X 42”
- Ramp 7”
- Bed Height 28” to 42”
C2 Liftgate 1300lbs Aluminum Platform
- Load Area 55" x 38"
- Ramp 6"
- Bed Height 28" to 42"
C2 Liftgate 1300lbs Aluminum Platform
- Load Area 55” X 48”
- Ramp 6”
- Bed Height 28” to 42”
C2 Liftgate 1300lbs Grip Strut Platform
- Load Area 55” X 27”
- Ramp 4”
- Bed Height 28” to 42”
C2 Liftgate 1300lbs Bar Grate Platform
- Load Area 55” X 27”
- Ramp 4”
- Bed Height 28” to 42”
C2 Liftgate 1500lbs Steel Platform
- Load Area 55” X 27”
- Ramp 4“
- Bed Height 28” to 42”
C2 Liftgate 1500lbs Steel Platform
- Load Area 55” X 38”
- Ramp 4”
- Bed Height 28” to 42”
C2 Liftgate 1500lbs Steel Platform
- Load Area 55” X 42”
- Ramp 7”
- Bed Height 28” to 42”
C2 Liftgate 1500lbs Aluminum Platform
- Load Area 55” X 38”
- Ramp 6”
- Bed Height 28” to 42”
C2 Liftgate 1500lbs Aluminum Platform
- Load Area 55” X 48”
- Ramp 6”
- Bed Height 28” to 42”
C2 Liftgate 1500lbs Grip Strut Platform
- Load Area 55” X 27”
- Ramp 4”
- Bed Height 28” to 42”
C2 Liftgate 1500lbs Bar Grate Platform
- Load Area 55” X 27”
- Ramp 4”
- Bed Height 28” to 42”
