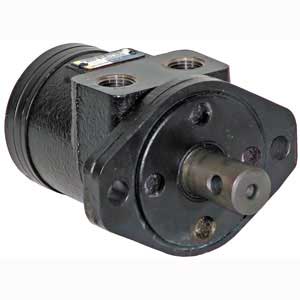

HYDRAULIC SPINNER MOTOR WITH 2-BOLT MOUNT AND CROSS-DRILLED SHAFT

Product Details

HYDRAULIC SPINNER MOTOR

• Compares To101-1319-009
• Flow (Continuous)12 GPM
• Input Mount Type2 Bolt
• MaterialCast Iron
• Maximum Case Pressure (Without Case Drain)1500 PSI
• Maximum Speed (Continuous)969 RPM
• Pilot Diameter3.25 "
• Shaft KeywayCross drilled "
• Shaft TypeStraight
• Displacement2.8 in.²
• Flow (Intermittent)14 GPM
• Torque Rating (Continuous)650 Inch Pound
• Torque Rating (Intermittent)720 Inch Pound
• Port Size1/2 NPT
• Shaft Size1.00 "
• Maximum Speed At Continuous Flow969 RPM
• Maximum Speed At Intermittent Flow1130 RPM
• Minimum Starting Torque (Continuous Pressure)520 Inch Pound
• Minimum Starting Torque (Intermittent Pressure)720 Inch Pound
• Pressure Δ Bar (Continuous)1800 PSI
• Pressure Δ Bar (Intermittent)2400 PSI
