Load Sensing Spreader Valve 5-15 GPM
+ Tap or click image to enlarge
$300.96
$481.54
SKU HV515LS
Product Details

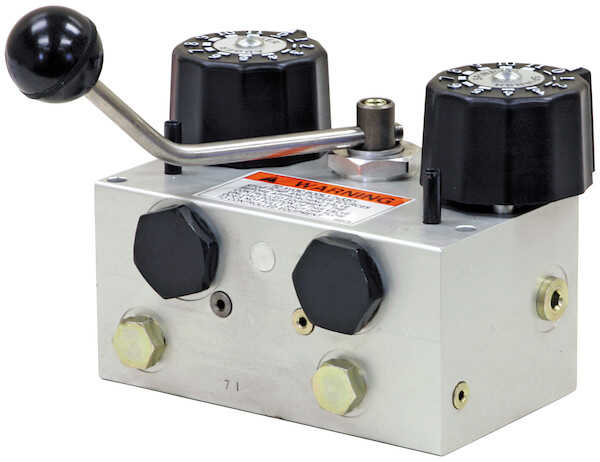

The Load Sensing Spreader Valve from Buyers Products has internal load sensing checks that communicate pressure signals to a load sensing pump in order to increase or decrease the flow. The valve can handle a maximum 3000 PSI.
Dirt-tolerant and reliable, it features honed and matched hardened steel working parts for a long life. Flow for each operation is easy to adjust with two detent knobs, each featuring 11 positive positions. An On/Unload lever has detented stops.
- Type Load Sensing
- Single Or Dual Flow Dual
- Functions Supported Spinner/Auger

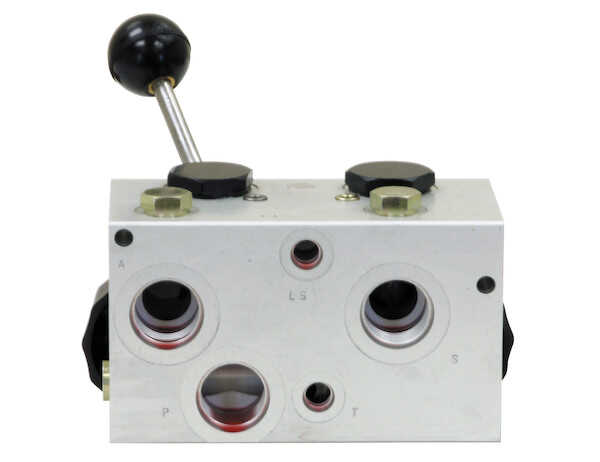

- Number Of Ports 5
- Inlet Port 3/4 NPT
- Spinner Port 1/2 NPT
- Tank Port 3/4 NPT
- Auger/Chain Port 3/4 NPT
- Load Sensing Port 1/4 NPT
- Whats Included Valve Only
- Main Relief Setting 1500 PSI
- Flow (GPM) 20 GPM
- Flow (LPM) 76 LPM
- Spinner Flow Rate Max (GPM) 5 GPM
- Auger/Chain Flow Rate Max (LPM) 57.5 LPM
- Spinner Flow Rate Max (LPM) 57.5 LPM
- Auger/Chain Flow Rate Max (GPM) 15 GPM
- Pressure 2000 PSI
- Pressure (Bar) 140
- Relief Cartridge Setting 1500 PSI
- GPS Capable? No
- GPS Included? No
- Included Control Type Manual
- Mount Type Base
- Pre-Wet Supported? No
