Rosco Heavy Duty Front & Rear Object Detection System BSSK4006

Product Details

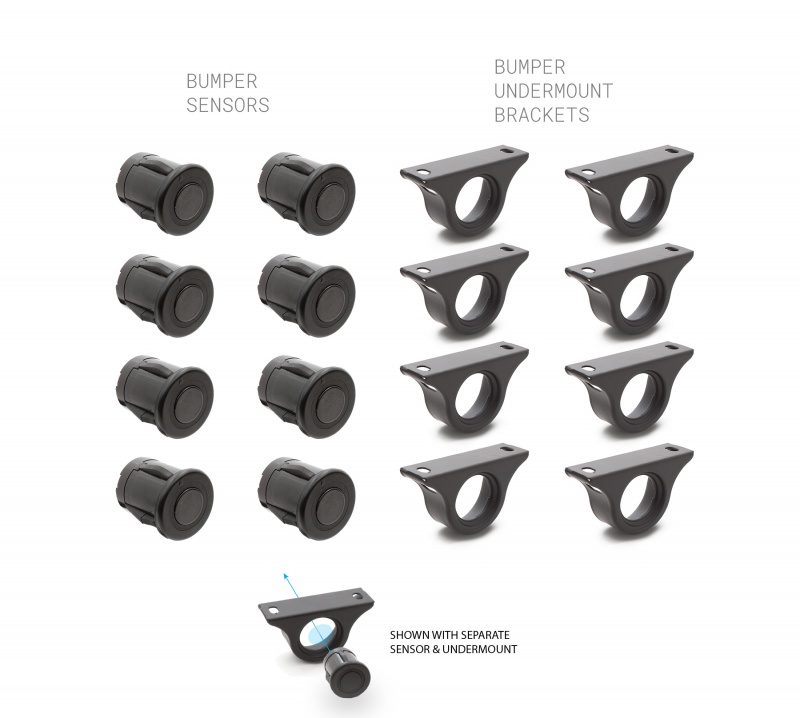

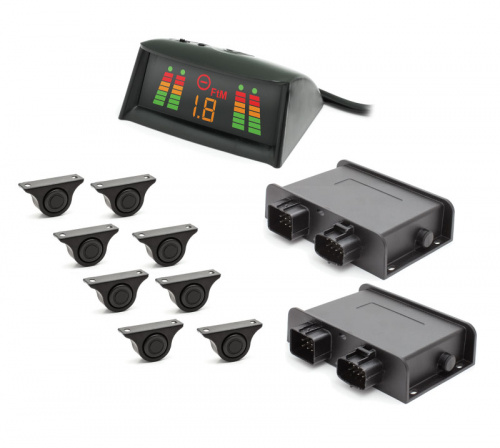

Boost the safety of your bus, truck, or fleet vehicle with the addition of our commercial grade BSSK4006 proximity sensor kit. This heavy-duty kit uses ultrasonic sensor technology to detect the distance from the front or rear of the vehicle, to obstructions. Object distance is indicated on a digital display that uses both visual and audible alerts when the vehicle is too close to an object. This kit includes 8 sensors and 8 separate bumper mounts for complete front and rear coverage. This sensor kit is hardwired for real time performance with no latency and no disruptions of signals. All of the sensors and control units are fully sealed and weather resistant.

Specifications

Rated Voltage DC: 12 V
Input Voltage Range DC: 10.5 ~ 32V
Current Consumption: <300ma
Display Buzzer
Buzzer Frequency: 2400 ± 100 Hz
Sensor Detection Range Bottom / Bumper: 6.0 ft / 13.0 ft
Submersion-Proof Sensors: IP67
Weather-Proof ECU: IP65
Operating Temperature: -22°F ~ +176°F (-30C ~ + 80C)
Storage Temperature: -40°F ~ +185°F (-40C ~ +85C)
Sensor Operating Frequency: 58 ± 1kHz (ultrasonic sound)
