Tommy Gate 1046-1650 Old Original Series Parts
OLD 1046, 1346, 1348, 1350, 1646, 1648 AND 1650 ORIGINAL SERIES
(Before Serial # M-341000 1000# & 1300#) (Before Serial # M16-28000 1600#)
FOR MODELS 64SB, 72, 80, 86 & 91
OLD 1046LD, 1346LD, 1348LD, 1350LD, 1646LD, 1648LD AND 1650LD ORIGINAL SERIES PARTS DRAWING
(Before Serial # M-340978 1000# & 1300#) (Before Serial # M16-27979)
FOR MODELS 72LD, 80LD, 86LD & 91LD
| Draw. | Part | Qty | |
| Ref. | No. | Description | Required |
| 1 | 001660 | (64SB) 36" Treadplate Replacement Platform | 1 |
| 001638 | 64SB EA Replacement Platform | 1 | |
| 001661 | (72) 36" Treadplate Replacement Platform | 1 | |
| 001639 | 72 EA Replacement Platform | 1 | |
| 001662 | (80) 36" Treadplate Replacement Platform | 1 | |
| 001640 | 80 EA Replacement Platform | 1 | |
| 001663 | (86) 36" Treadplate Replacement Platform | 1 | |
| 001641 | 86 EA Replacement Platform | 1 | |
| 001664 | (91) 36" Treadplate Replacement Platform | 1 | |
| 001642 | 91 EA Replacement Platform | 1 | |
| N/A | (72) LD Treadplate Replacement Platform (Discontinued - See Drawing Ref 84) | 1 | |
| N/A | (80) LD Treadplate Replacement Platform (Discontinued - See Drawing Ref 84) | 1 | |
| N/A | (86) LD Treadplate Replacement Platform (Discontinued - See Drawing Ref 84) | 1 | |
| N/A | (91) LD Treadplate Replacement Platform (Discontinued - See Drawing Ref 84) | 1 | |
| 009488 | (72) LD Treadplate Replacement Platform (New Style) | 1 | |
| 009489 | (80) LD Treadplate Replacement Platform (New Style) | 1 | |
| 009553 | (86) LD Treadplate Replacement Platform (New Style) | 1 | |
| 009552 | (91) LD Treadplate Replacement Platform (New Style) | 1 | |
| 2 | 003188 | 1046-1650 Replacement Platform Chain | 2 |
| 003848 | 50" Travel EA Replacement Platform Chain (with 1.579" Pin) | 2 | |
| 003884 | 50" Travel EA Replacement Platform Chain (with 1.079" Pin) | 2 | |
| N/A | 1046LD-1650LD Replacement Platform Chain (Discontinued - See Drawing Ref 84) | 2 | |
| 003849 | 40+8 Replacement Platform Chain | 2 | |
| 3 | 003560 | 64SB Replacement Sub Assembly | 1 |
| 003595 | 64SB EA Replacement Sub Assembly | 1 | |
| 003563 | 72 Replacement Sub Assembly | 1 | |
| 003596 | 72EA Replacement Sub Assembly | 1 | |
| 003568 | 80 Replacement Sub Assembly | 1 | |
| 003597 | 80EA Replacement Sub Assembly | 1 | |
| 003572 | 86 Replacement Sub Assembly | 1 | |
| 003598 | 86EA Replacement Sub Assembly | 1 | |
| 003576 | 91 Replacement Sub Assembly | 1 | |
| 003599 | 91EA Replacement Sub Assembly | 1 | |
| N/A | 72LD Replacement Sub Assembly (Discontinued - See Drawing Ref 84) | 1 | |
| N/A | 80LD Replacement Sub Assembly (Discontinued - See Drawing Ref 84) | 1 | |
| N/A | 86LD Replacement Sub Assembly (Discontinued - See Drawing Ref 84) | 1 | |
| N/A | 91LD Replacement Sub Assembly (Discontinued - See Drawing Ref 84) | 1 | |
| 4 | 006428 | 64 Replacement Hinge Tube- Steel Platform | 1 |
| 006429 | 72 Replacement Hinge Tube- Steel Platform | 1 | |
| 006430 | 80 Replacement Hinge Tube- Steel Platform | 1 | |
| 006431 | 86 Replacement Hinge Tube- Steel Platform | 1 | |
| 006432 | 91 Replacement Hinge Tube- Steel Platform | 1 | |
| 5 | 001126 | 1046-1650 Replacement Lift Arm w/Pins & Zerks | 4 |

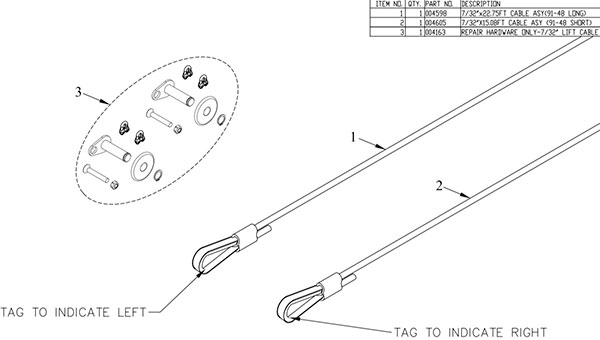

| 6 | 002939 | Universal Set 7/32" Replacement Lift Cable Kit (Not for Mini) | 1 |

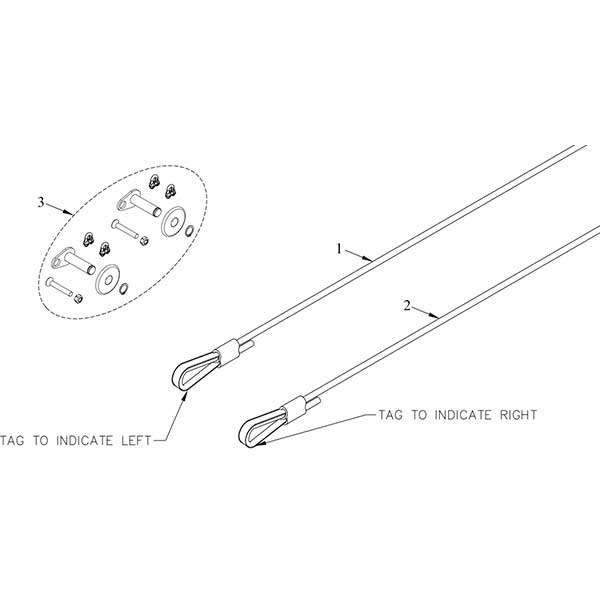

| 003124 | Universal Set 5/16" Replacement Lift Cable Kit | 1 | |
| 7D | 004181 | 4" Dia. Double (7/32") Groove Replacement Pulley Kit with 7/8" Cross Box Pin | 1 |
| 004182 | 4" Dia. Double (5/16") Groove Replacement Pulley Kit with 7/8" Cross Box Pin | 1 | |
| 7S | 004185 | 4" Dia. Single (7/32") Groove Replacement Pulley Kit with 7/8" Cross Box Pin | 1 |

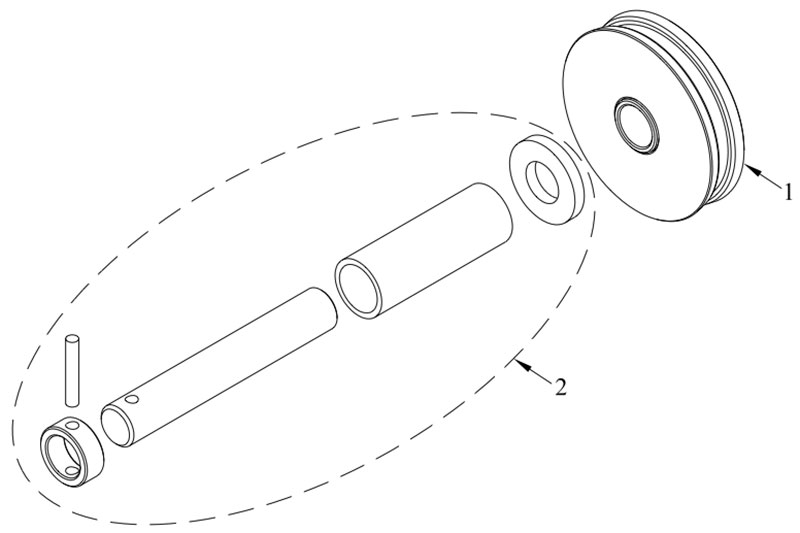

| 004186 | 4" Dia. Single (5/16") Groove Replacement Pulley Kit with 7/8" Cross Box Pin | 1 | |
| 8 | 006516 | Replacement Cloth Chain Cover 29" | 2 |
| 006596 | Replacement Cloth Chain Cover 38" | 2 | |

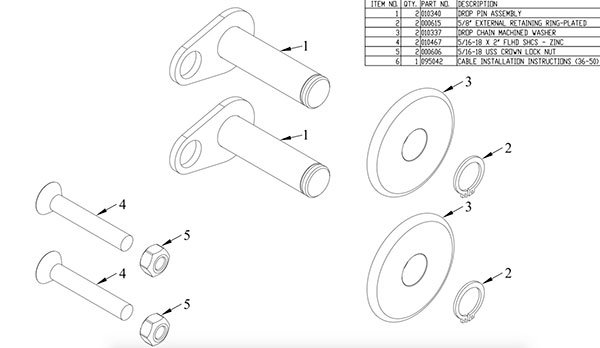

| 9 | 010512 | Drop Pin Assembly Kit (Set of 2) (36-50" Travel) | 1 |
| 9S | 004183 | 4" Single (7/32") Groove Replacement Pulley Kit with 7/8" Upright Pin | 2 |
| 004184 | 4" Single (5/16") Groove Replacement Pulley Kit with 7/8" Upright Pin | 2 | |
| 10 | 004964 | Replacement Box Cover (64) | 1 |
| 004965 | Replacement Box Cover (72) | 1 | |
| 004966 | Replacement Box Cover (80) | 1 | |
| 004967 | Replacement Box Cover (86) | 1 | |
| 004968 | Replacement Box Cover (91) | 1 | |

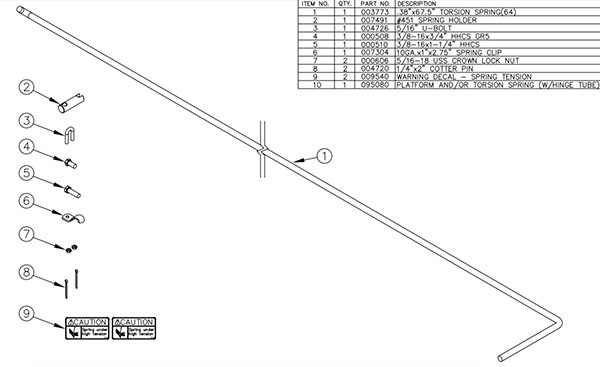

| 11 | 003691 | Torsion Spring Kit (64) | 1 |
| 010288 | EA Torsion Spring Kit (64) (except EA with 2-1/2" lid ends) | 1 | |
| 003692 | Torsion Spring Kit (72) | 1 | |
| 008028 | EA Torsion Spring Kit (72) (except EA with 2-1/2" lid ends) | 1 | |
| 003693 | Torsion Spring Kit (80) | 1 | |
| 008117 | EA Torsion Spring Kit (80) (except EA with 2-1/2" lid ends) | 1 | |
| 003694 | Torsion Spring Kit (86) | 1 | |
| 008118 | EA Torsion Spring Kit (86) (except EA with 2-1/2" lid ends) | 1 | |
| 003698 | Old Style SQ. Torsion Spring Kit (86) | 1 | |
| 003695 | Torsion Spring Kit (91) | 1 | |
| 008119 | EA Torsion Spring Kit (91) (except EA with 2-1/2" lid ends) | 1 | |
| 003699 | Old Style SQ. Torsion Spring Kit (91) | 1 | |
| 13 | 000992 | Replacement Copper Lug | 6 |
| 14 | 000998 | Replacement 150 Amp Manual Reset Circuit Breaker | 1 |
| 17 | 000967 | Replacement Raise Solenoid-3 Post | 1 |

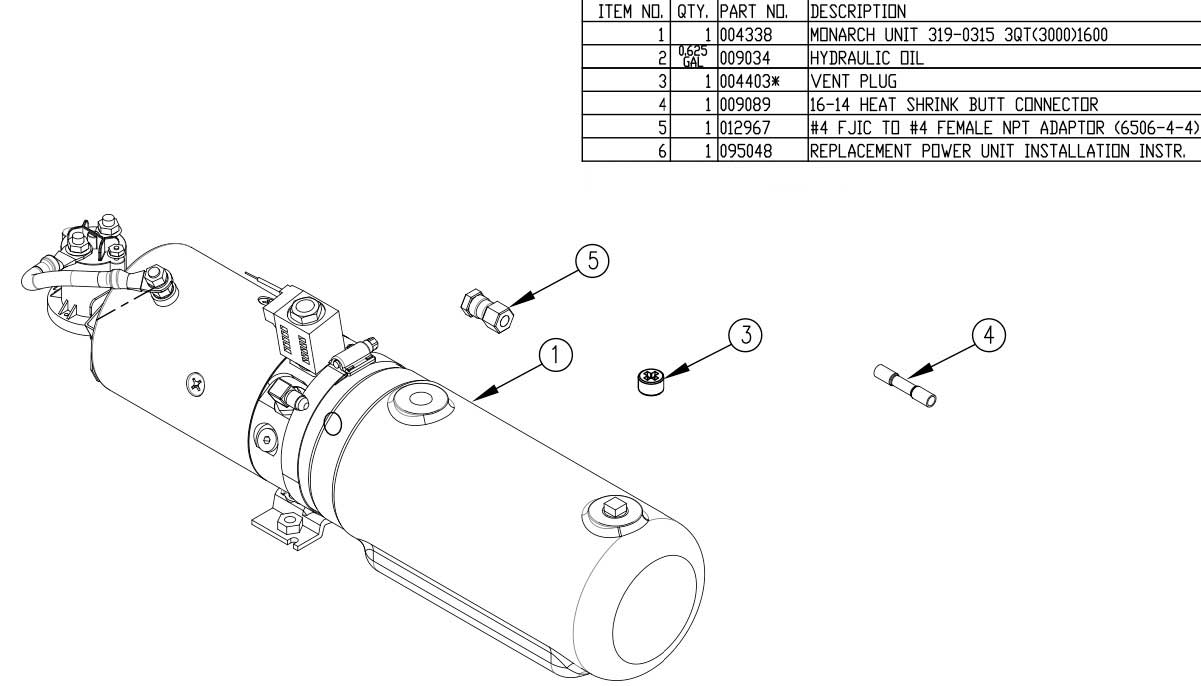

| 18 | 004365 | M319 Replacement Pump & Motor (2500psi) 3qt.** 1346 Thru 1350 | 1 |

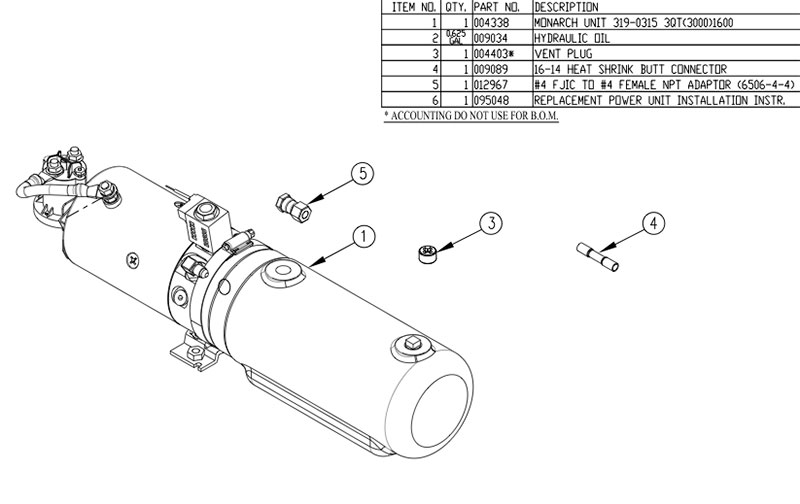

| 004366 | M319 Replacement Pump & Motor (3000psi) 3qt.** 1646 Thru 1650 | 1 | |
| 004079 | M319 Replacement Pump & Motor (3800psi) 3qt.** 1046 | 1 | |
| 19 | 009758 | 1046 Replacement Cylinder | 1 |
| 009763 | 64SB-1346 Replacement Cylinder | 1 | |
| 009759 | 1348-1350 Replacement Cylinder | 1 | |

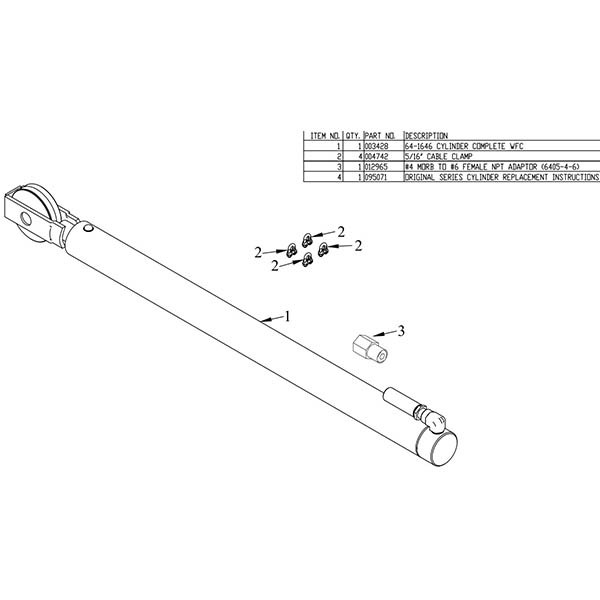

| 003432 | 64SB-1646 Replacement Cylinder | 1 | |

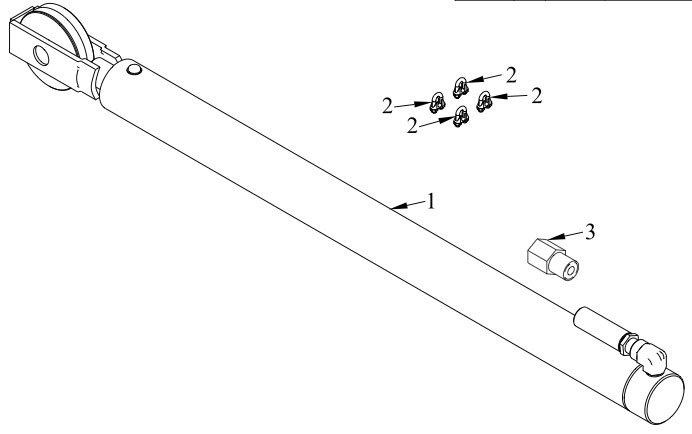

| 009754 | 1648-1650 Replacement Cylinder | 1 | |
| 20 | 000989 | Replacement Vent Plug | 1 |

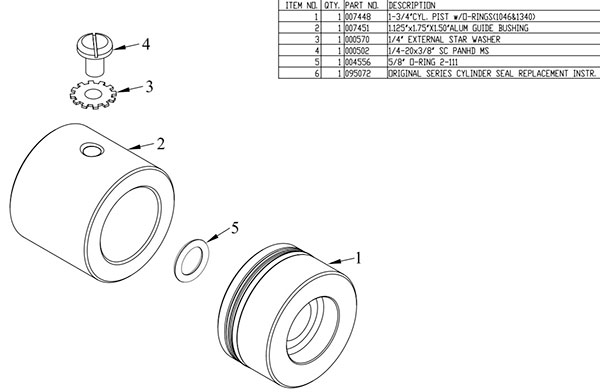

| 21 | 001140 | 1-3/4" Cylinder Repair Kit (1046 & 1340) Includes Piston, Guide Bushing & O-rings | 1 |
| 001141 | 2" Cylinder Repair Kit (1346-1650) Includes: Piston, Guide Bushing & O-rings | 1 | |
| 25 | 003223 | Cylinder Shaft w/Pulley Assembly (1046) Includes: Cylinder Repair Kit | 1 |
| 003220 | Cylinder Shaft w/Pulley Assembly (1346) Includes: Cylinder Repair Kit | 1 | |
| 003225 | Cylinder Shaft w/Pulley Assembly (1348-1350) Includes: Cylinder Repair Kit | 1 | |
| 003228 | Cylinder Shaft w/Pulley Assembly (1646) Includes: Cylinder Repair Kit | 1 | |
| 003226 | Cylinder Shaft w/Pulley Assembly (1648-1650) Includes: Cylinder Repair Kit | 1 | |
| 30 | 000973 | Replacement Monarch Lee Check Valve (after serial # M-336056 1000# & 1300#) | 1 |
| (after serial # M16-26870 1600#) | |||

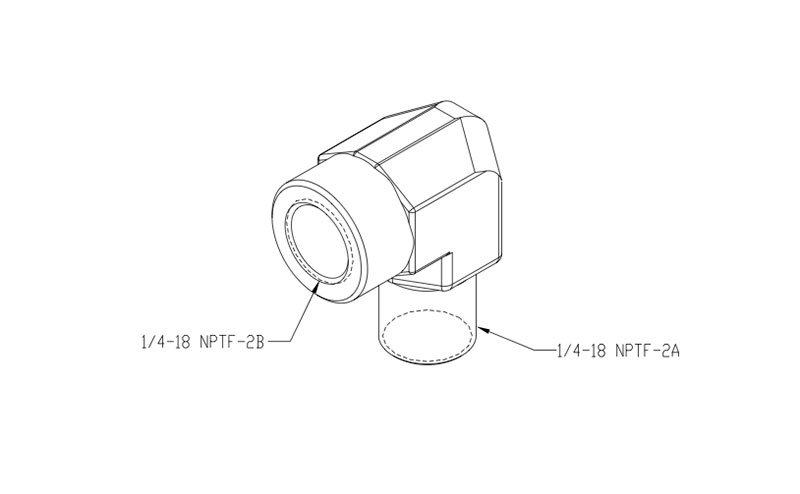

| 31 | 000944 | Replacement 90 Degree Elbow (Male 9/16 O-ring Boss x Female 1/4 NPTF) | 1 |
| 000945 | Replacement 90 Degree Elbow (Male 3/8 NPTF x Female 1/4 NPTF) | 1 | |
| 012607 | Replacement 90 Degree Elbow (Male 9/16 ORB x Female 9/16 ORB) | 1 | |
| 013073 | Replacement 90 Degree Elbow (Male 7/16 ORB x Female 7/16 ORB) | 1 | |
| 33 | 012682 | Replacement 1/4" x 44" Hydraulic Hose w/ Adapters (64-1046) | 1 |
| 012683 | Replacement 1/4"x48" Hydraulic Hose w/ Adapters (72-1046 & 650) | 1 | |
| 012684 | Replacement 1/4"x56" Hydraulic Hose w/ Adapters (80-1046) | 1 | |
| 012685 | Replacement 1/4"x62" Hydraulic Hose w/ Adapters (86-1046) | 1 | |
| 012686 | Replacement 1/4"x68" Hydraulic Hose w/ Adapters (91-1046) | 1 | |

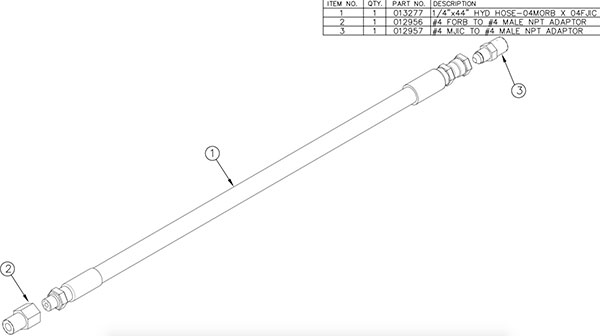

| 012959 | Replacement 1/4"x44" Hydraulic Hose w/ Adapters (64-1346-1646SB) | 1 | |
| 012960 | Replacement 1/4"x48" Hydraulic Hose w/ Adapters (72-1348-1650) | 1 | |
| 012961 | Replacement 1/4"x56" Hydraulic Hose w/ Adapters (80-1348-1650) | 1 | |
| 012962 | Replacement 1/4"x62" Hydraulic Hose w/ Adapters (86-1348-1650) | 1 | |
| 012963 | Replacement 1/4"x68" Hydraulic Hose w/ Adapters (91-1348-1650) | 1 | |
| 34 | 000978 | Replacement 1/4"x1/4"x90 Degree Steel Cylinder Elbow | 1 |
| 000934 | Replacement 3/8"x3/8"x90 Degree Cylinder Elbow | 1 | |
| 012611 | Replacement 90 Degree Elbow (Male 9/16 ORB x Male 7/16 JIC) | 1 | |
| 35 | 006832 | 1-1/2" Replacement Cylinder Clamp (1034-1040) | 2 |
| 006833 | 1-3/4" & 2" Replacement Cylinder Clamp (1340-1650) | 2 | |
| 36 | 003253 | Replacement Cylinder Barrel Assembly (1046) Includes: Cylinder Repair Kit | 1 |
| 003256 | Replacement Cylinder Barrel Assembly (1346-1646) Includes: Cylinder Repair Kit | 1 | |
| 003254 | Replacement Cylinder Barrel Assembly (1348-1650) Includes: Cylinder Repair Kit | 1 | |
| 37 | 004708 | Replacement 4Ga. 2 Wire Electric Cable w/Lugs-33 ft. | 1 |
| 38 | 004355 | Replacement Monarch Plastic Tank (3qt.)** | 1 |
| 39 | 000987 | Replacement Fixed Control | 1 |
| 40 | 001111 | License Plate Mount Kit | 1 |
| 41 | 000949 | Replacement Original Series License Plate Light | 2 |
| 42 | 000958 | Replacement 12 Volt Motor-Only (Monarch)** | 1 |
| 43 | 007545 | 3/4" Arm Pin w/Zerk (before serial # M-83394) | 10 |

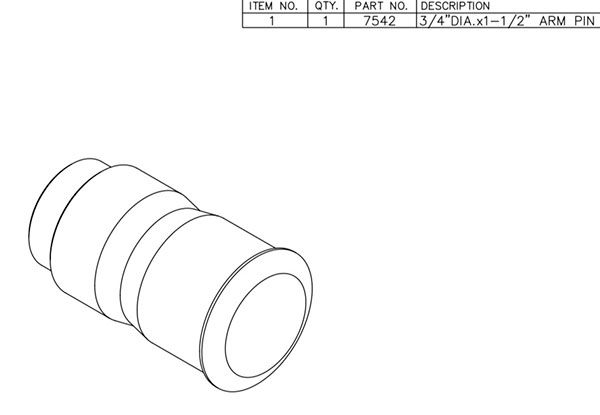

| 000951 | Replacement 3/4"x1-1/2" Arm Pin (after serial # M-83393) | 10 | |
| 007547 | 7/8" Arm Pin w/Zerk (before serial # M-82341-1000#&1300#) | 10 | |
| (before serial # M16-13066-1600#) | |||

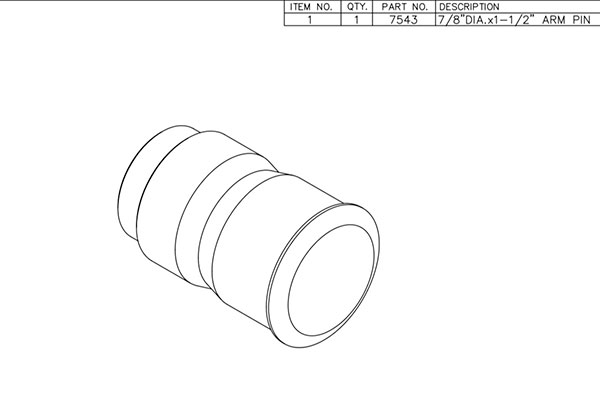

| 000952 | Replacement 7/8" Arm Pin (after serial # M-82340-1000#&1300#) | 10 | |
| (after serial # M16-13065-1600#) | |||
| 44 | 009645 | Release Solenoid External Assembly w/Connector | 1 |
| 45 | 012749 | Replacement Flow Control (7/16 M x 7/16 F x 0.078) w/ Adapters for (1/4 M x 1/4 F x 0.078) |
1 |
| 012608 | Replacement Flow Control (9/16 M x 7/16 Fx 0.078) w/ Adapters for (3/8 M x 3/8 F x 0.078) |
1 | |
| 46 | 003818 | Kickaway Spring w/Pin | 2 |
| 47 | N/A | Replacement M319 Pump (only) w/3qt. Tank (2500psi)** 1346 thru 1350 ) (Discontinued - See Drawing Ref 18) | 1 |
| N/A | Replacement M319 Pump (only) w/3qt. Tank (3000psi)** 1646 thru 1650 ) (Discontinued - See Drawing Ref 18) | 1 | |
| N/A | Replacement M319 Pump (only) w/3qt. Tank (3800psi)** 1046 ) (Discontinued - See Drawing Ref 18) | 1 | |

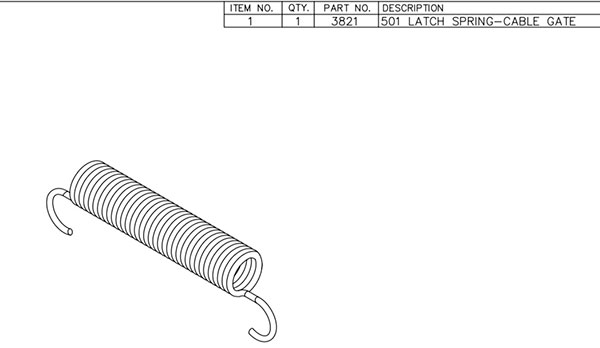

| 48 | 000954 | Replacement Latch Spring | 1 |

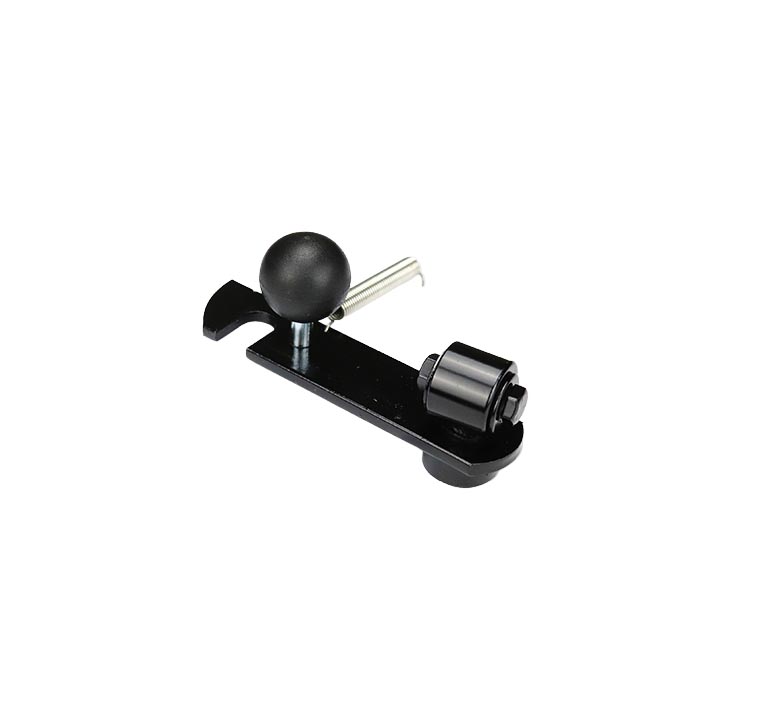

| 50L | 001070 | Driver's Side Latch Kit (swing away) | 1 |

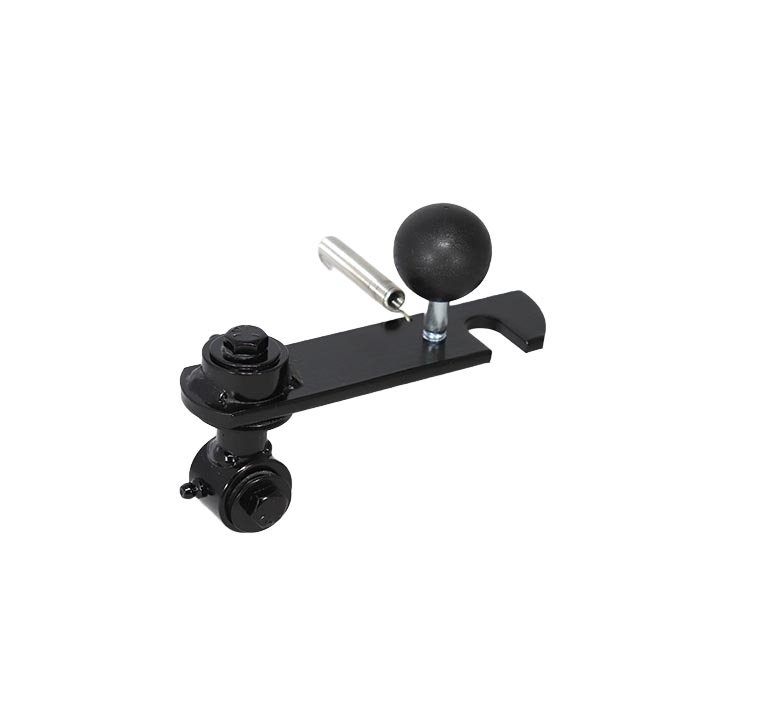

| 001107 | Driver's Side Latch Kit EA (swing away) | 1 | |

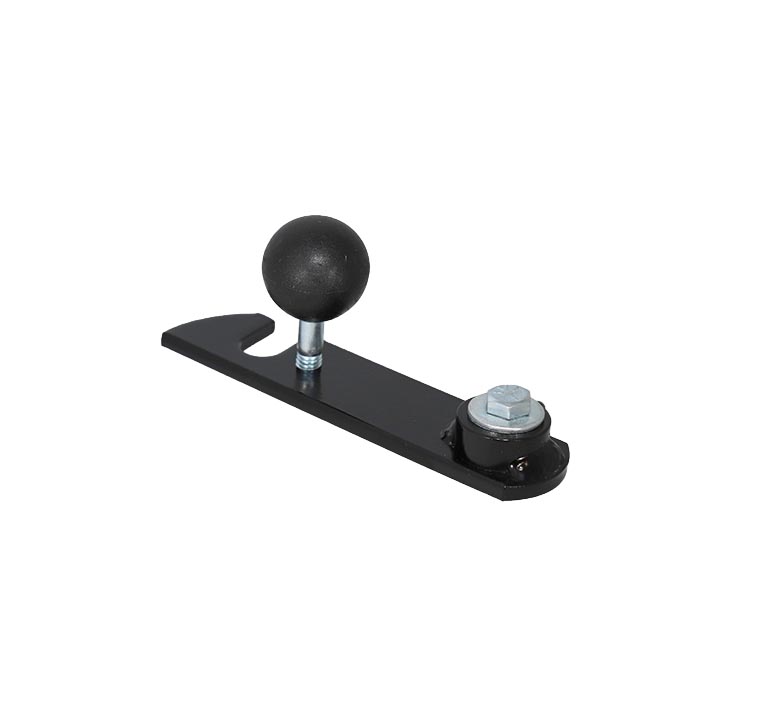

| 51R | 001071 | Passenger's Side Latch Kit (fixed) | 1 |
| 52 | 000955 | Replacement Latch Knob w/Stud | 2 |

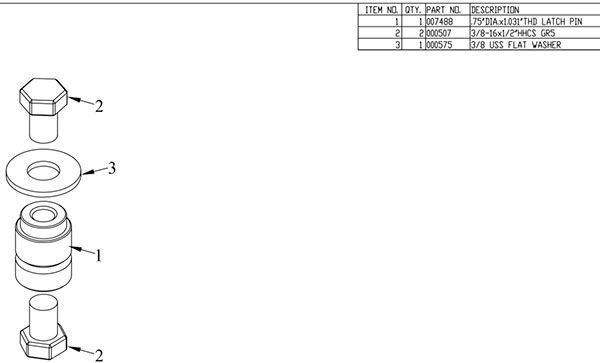

| 53 | 007516 | Replacement Threaded Latch Bushing | 2 |
| 55 | 000932 | Replacement (91) Grip Tape Kit For Platform | 1 |
| 60 | 004713 | EA Replacement Latch Rivet (1.5") | 2 |
| 004716 | EA Replacement Latch Rivet (2") | 2 | |
| 61 | 004712 | EA Replacement Platform Chain Pin (1.079") | 2 |
| 004715 | EA Replacement Platform Chain Pin (1.579") | 2 | |
| 72 | 009521 | Replacement Latch Pin & Lanyard Kit | 2 |
| 74 | 001083 | Replacement Pin & Chain Only (LND) | 2 |
| 75 | N/A | Dump Thru Knob & Pin Kit w/Spring-Driver Side (Discontinued - See Drawing Ref 84) | 1 |
| 76 | N/A | Replacement Dump Thru Handle Kit-Pass. Side (Discontinued - See Drawing Ref 84) | 1 |
| 81 | N/A | 72LD Replacement Platform Frame Assembly (Discontinued - See Drawing Ref 84) | 1 |
| N/A | 80LD Replacement Platform Frame Assembly (Discontinued - See Drawing Ref 84) | 1 | |
| N/A | 86LD Replacement Platform Frame Assembly (Discontinued - See Drawing Ref 84) | 1 | |
| N/A | 91LD Replacement Platform Frame Assembly (Discontinued - See Drawing Ref 84) | 1 | |
| 82 | N/A | 72LD Replacement Treadplate Platform Insert (Discontinued - See Drawing Ref 84) | 1 |
| N/A | 80LD Replacement Treadplate Platform Insert (Discontinued - See Drawing Ref 84) | 1 | |
| N/A | 86LD Replacement Treadplate Platform Insert (Discontinued - See Drawing Ref 84) | 1 | |
| N/A | 91LD Replacement Treadplate Platform Insert (Discontinued - See Drawing Ref 84) | 1 | |
| 83 | N/A | 72LD Lower Replacement Latch Assembly (Discontinued - See Drawing Ref 84) | 1 |
| N/A | 80LD Lower Replacement Latch Assembly (Discontinued - See Drawing Ref 84) | 1 | |
| N/A | 86LD Lower Replacement Latch Assembly (Discontinued - See Drawing Ref 84) | 1 | |
| N/A | 91LD Lower Replacement Latch Assembly (Discontinued - See Drawing Ref 84) | 1 | |
| 84 | 002514 | Retro 72 LND Replacement Platform & Sub Assembly Kit | 1 |
| 002515 | Retro 80 LND Replacement Platform & Sub Assembly Kit | 1 | |
| 002516 | Retro 86 LND Replacement Platform & Sub Assembly Kit | 1 | |
| 002517 | Retro 91 LND Replacement Platform & Sub Assembly Kit | 1 | |
| 85 | 006329 | 72LD Replacement Sub Assembly (For Retro Kit # 2514 Only) | 1 |
| 006330 | 80LD Replacement Sub Assembly (For Retro Kit # 2515 Only) | 1 | |
| 006331 | 86LD Replacement Sub Assembly (For Retro Kit # 2516 Only) | 1 | |
| 006332 | 91LD Replacement Sub Assembly (For Retro Kit # 2517 Only) | 1 |
