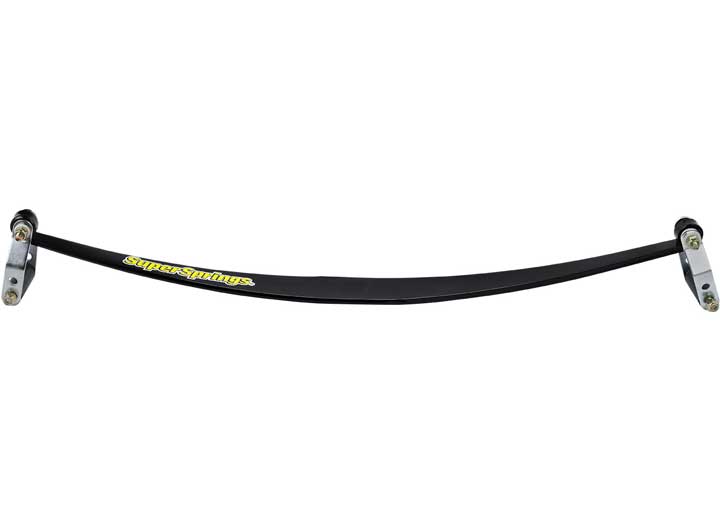

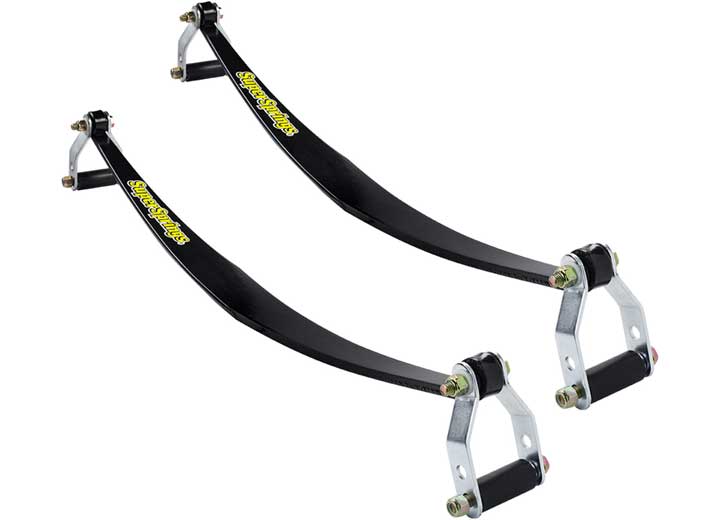

SUPERSPRING Suspension Kit SSA-8

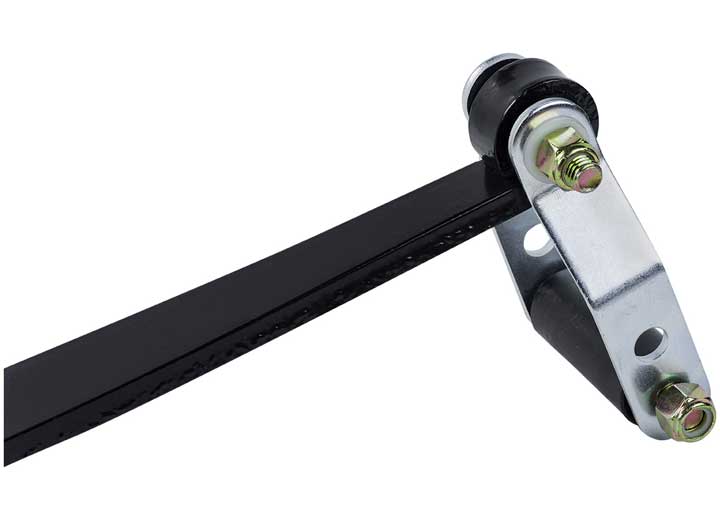

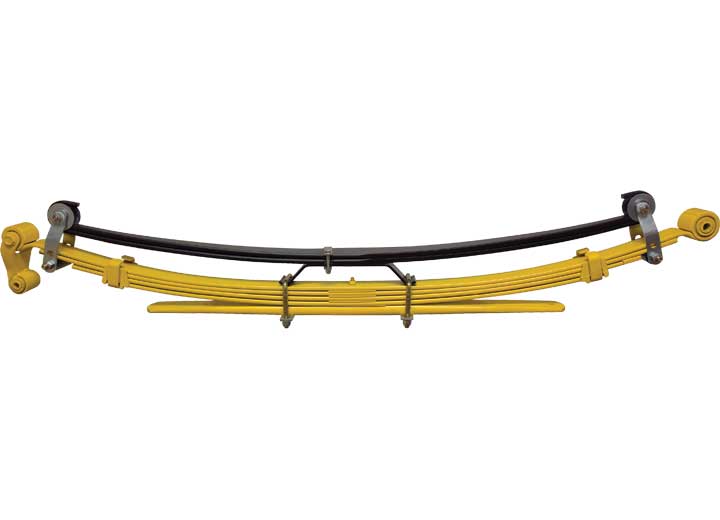

The SuperSprings are length specific to fit varying sized leaf springs. In addition the different lengths typically are manufactured in light, medium and heavy duty strengths. The sole adjustment on the SuperSprings is found in the roller shackles at the end of each leaf. The typical shackle has two bolt holes, as shown in the diagram below though some single hole and three holed shackles are used. The most common installation involves positioning all four rollers in the lower (furthest from the eye of the SuperSpring / closest to the ground) bolt holes. This ensures the least amount of preload tension on the SuperSprings and keeps the vehicle closest to its original factory ride conditions. Upper bolt holes may be used if additional “lift” is desired in the vehicle; if clearance from obstructions is required or if the installation is on an older vehicle with some fatigue in the springs.

SuperSprings enhance load carrying capacity, handling and towing. Do not load any vehicle beyond the manufacturer’s gross vehicle weight rating.
