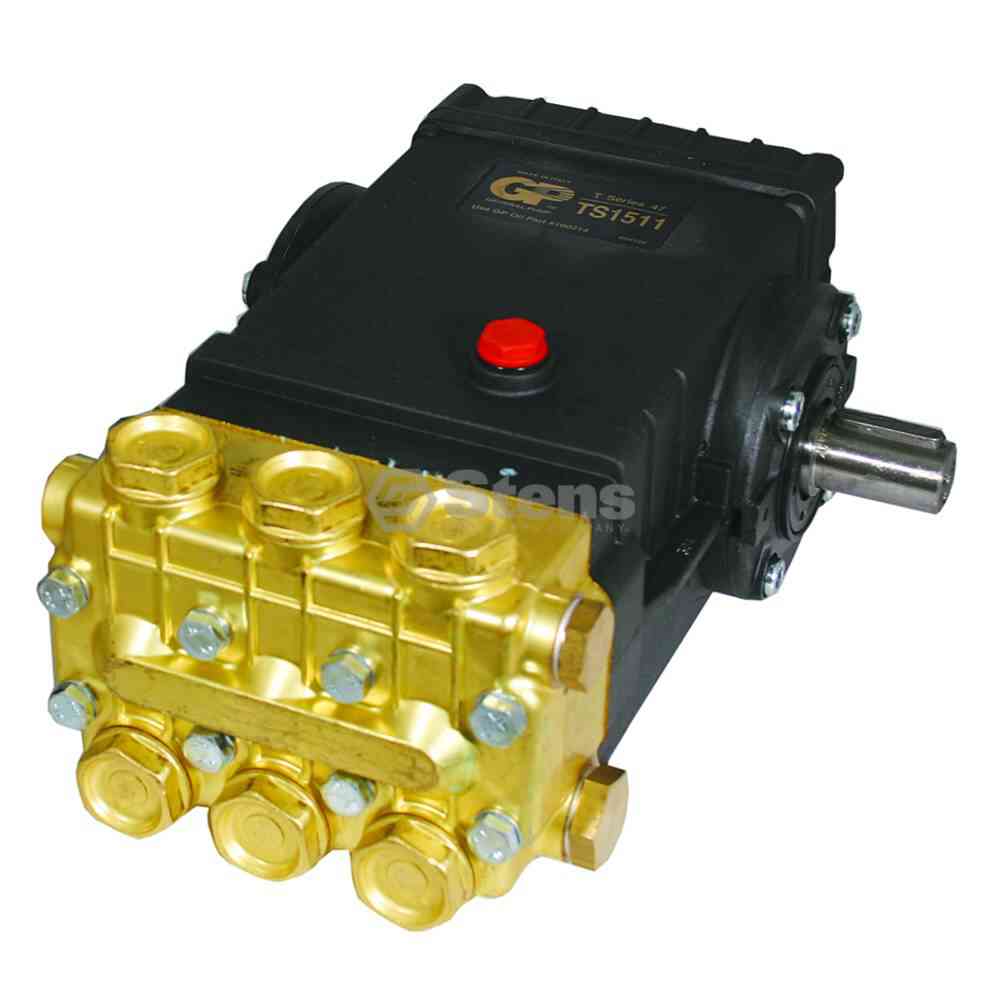

Solid Shaft Pump 030-027
+ Tap or click image to enlarge
General Pump TS1511
$1,450.53
$1,813.16
SKU 030-027
Product Details
Gallons Per Minute: 4.0
Heavy-duty tapered roller bearings
Forged brass manifold with exclusive lifetime warranty
Pounds Per Square Inch: 3,500
Triplex plunger pump with solid shaft
Maximum fluid temperature 165° F.,
Crankcase oil capacity 40.6 oz.,
Manufacturer warranty applies,
Maximum inlet pressure 125 PSI,
Oversized connecting rods for maximum life
Shaft diameter .945"
Discharge port thread 3/8"-19 BSP-F,
GHP: 9.6
T Series 47,
RPM: 1,450,
Bore: 0.787 ",
Pump dimensions 12.6" x 9.2" x 6.9"
Type: Solid Shaft
Stroke: .472,
Maximum inlet vacuum 9 ft., water (7.9" Hg),
Made By: An OEM supplier,
Inlet port thread 1/2"-14 BSP-F
