Pressure Washer Pump
+ Tap or click image to enlarge

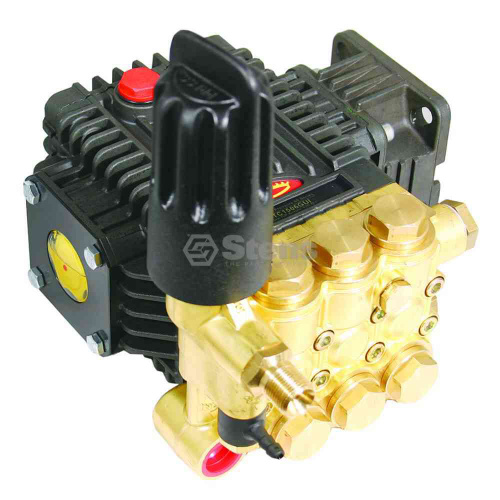

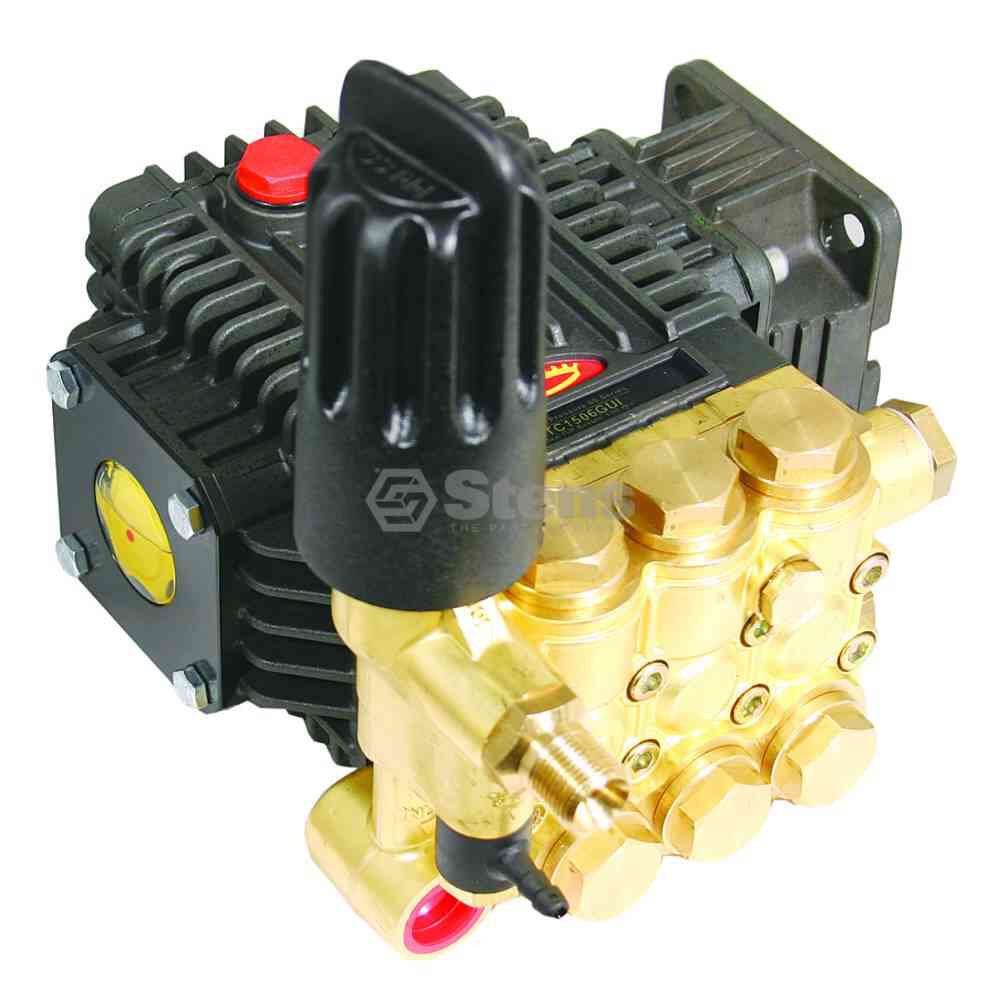

General Pump TC1506GUI
$947.70
$1,184.62
SKU 030-010
Product Details
TC Series 60
Crankcase oil capacity 11.8 oz.
Flanged for direct couple to gasoline engines
Triplex plunger pump
3/4" hollow shaft
Bore: 0.591 "
Manufacturer warranty applies, SAE J609A,
Flooded pump dimesions 10.4" x 8" x 7.7"
Maximum fluid temperature 165° F.
Inlet port thread 1/2"-14 BSP-F
Gauge port 1/8" maximum inlet required
Pounds Per Square Inch: 2,700, RPM: 3,400
Premium built-in trapped pressure unloader on left side of manifold with an exclusive lifetime warranty
Made By: An OEM supplier
Discharge port thread 3/8"-19 BSP-F
GHP: 7.21
Type: Gas Flanged
Maximum inlet pressure 125 PSI
Compact design
Gallons Per Minute: 2.6
Stroke: .256
Shipping
Warranty
Stens Guarantees Its Parts 4 Times Longer Than Most Original Equipment ManufacturersStens Corporation guarantees that any goods supplied by us shall be free from defects in material and workmanship under normal use and service for ONE FULL YEAR from the date of purchase by the consumer. Most OEM's offer only a three month warranty. Stens stands behinds its parts for four times as long! See warranty detail click here.
