Rosco Rearview Mirror Monitor Kit License Plate Cam STSK4533

Product Details

This new system utilizes an interior rearview mirror to display a 4.3" LCD Monitor when the vehicle is in reverse operation. This monitor allows the driver to see behind the vehicle, and once the vehicle is shifted to all other modes of vehicle operation a normal mirror view appears.
Rosco’s rear view license plate camera gives the driver a 180 degree wide and clear views of what's behind the vehicle, allowing the driver to back up safely in all weather conditions. Fields of view this wide generally result in a distorted “fish-eye” output on the monitor, but Rosco cameras have digital correction technology to correct the image and portray it properly. The convenient and simple design affixes over your existing rear license plate, permitting the camera to be installed on the existing license plate holes of the vehicle. Perfect for Mini Vans, SUV's, Sedans, pick-up trucks and more. . The system is weather proof with a IP67 rating, shock resistant, comes with a one (1) year warranty, and complies with latest NHTSA 49 CFR Parts 571 & 585 (RIN 2127-AK43) when installed properly.

More Features and Benefits:
On Screen Menu
Automatic Triggers for Cameras
Simple Rearview Mirror Installation with Universal Mirror-Mount Tab
Two (2) Camera Input Capability

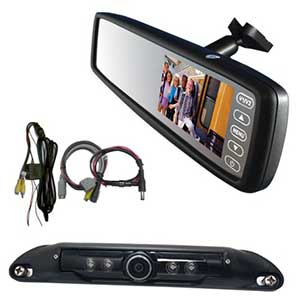

System Includes:
4.3" Rearview Mirror/Monitor
Color License Plate Camera
25 ft. Extension Harness
Power Harness
Accessories
Installation/user manual

Rearview Mirror/Monitor Technical Specifications:
Screen: 4.3" TFT Color LCD
Brightness: 350cd/m2
Contrast Ratio: 300:1
Resolution: 480x272
Current Draw: Maximum 120mA
Video Format: NTSC/PAL
Display Format: 4:3 or 16:9
Shock Rating: 100g
Vibration Rating 15g
Working Temp. °F (°C) -°5 to °140 (-°20 to °60)

License Plate Color Camera Technical Specifications:
Sharp® Color 1/4" CCD
Do-it-yourself design
Night Vision
Effected Pixels (NTSC): 512 x 492
Horizontal Resolution: 420 lines
Video Output: 1.0 Vp-p, 75 ohm
Field of View (Diagonal) 180°
Lens Focal Length: F= 1.7 mm, F= 2.5 mm
Sync. System: Internal
Dust/Water Rating: IP69K
Power Supply: 12 VDC from monitor
Current: Max. 180 mA
Signal-to-Noise Ratio: Greater then 48 dB
Operating Temperature: -4° to 176° F (-20° to +70° C)
Storage temperature: F° (C°) -40° to +176° (-40° to +80°)
Weight: 0.15kg
Dimensions: W x H x D = 199mm x 28mm x 25mm
Compatibility: Compatible with all Rosco 4-pin standard systems. Adapters are available for connection to other backup camera systems.
