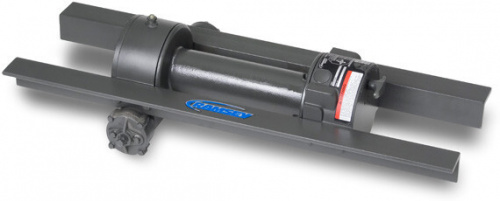

Ramsey Winch - H200 with 8,000lbs pull

Ramsey Winch - H200  with 8,000lbs pull
+ Tap or click image to enlarge
Hydraulic Worm Gear Winch
$1,903.15 $2,239.00
SKU 124015
Free Shipping
Ramsey Winches are built to order currently, due to supply limits. It may be up to 16-24 weeks for an order to be shipped. If you need more information please contact us.
Call To Order
1-866-658-7952

Product Details

This Winch's Configuration
Mounting ConfigurationFOLS
(Front Overwound Left Side)
Line Pull Rating (lbs.)8,000
Gear Ratio60:01:00
Drum Length11-5/16”
ClutchRam-Lok
Series Features
  • Recommended cable 3/8”
  • Meets SAE-J706
  • Made in the USA

Specifications

Rated Line Pull8,000 Lbs / 3,629 Kg
NoteRated line pull is based on the first layer of cable.
1st Layer Line Speed12.6 Ft/Min / 3.8 M/Min
Gear Ratio60:1
Weight w/o Cable110 Lbs / 50 Kg
Brake"Optional auxiliary brake is available", Yes – brake is self-locking
CableNone
Drum Size (L x F x B)11.31 x 7.25 x 3.50 In / 287.3 x 184.2 x 88.9 MM
Cable Capacity140 Ft / 42.7 M
Recommend Cable Size3/8 In / 9.5 MM
Hydraulic Pressure Required1,600 PSI (110 Bar)
Hydraulic Flow Required15.0 GPM (57 LPM)
Motor Size4.5 Cu. In. (74 cc)
Additional Motor OptionsCall Factory
Clutch TypeBlocked, RAM-LOK®, DOW-LOK®, Lever Style
Clutch ControlNone, Air, Manual

Shipping

Warranty

RAMSEY WINCH warrants each new RAMSEY Winch to be free from defects in material and workmanship for a period of one (1) year from date of purchase.
