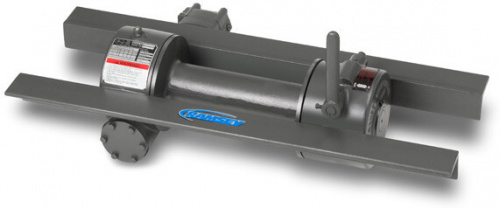

Ramsey Winch - H400 with 10,000lbs pull
![Ramsey Winch - H400 with 10,000lbs pull](https://www.zequip.com/store/media/Ramsey/ss_size1/H-400.jpg)
+ Tap or click image to enlarge
Hydraulic Worm Gear Winch
$3,356.65
$3,949.00
SKU 120248
![Free Shipping](/store/media/freeshipping.jpg)
Product Details
This Winch's Configuration | |
---|---|
Mounting Configuration | FOLS (Front Overwound Left Side) |
Line Pull Rating (lbs.) | 10,000 |
Gear Ratio | 29:01:00 |
Drum Length | 11-5/8” |
Clutch | Lever |
- Fast Line Speed” (33 ft/min)
- Recommended cable 7/16”
- Meets SAE-J706
- Made in the USA
Specifications
Rated Line Pull | 10,000 Lbs / 4,536 Kg |
Note | Rated line pull is based on the first layer of cable. |
1st Layer Line Speed | 33 Ft/Min / 10.1 M/Min |
Gear Ratio | 29:1 |
Weight w/o Cable | 150 Lbs / 68 Kg |
Brake | "Optional auxiliary brake is available", Yes – brake is self-locking |
Cable | None |
Drum Size (L x F x B) | 11.63 x 7.88 x 3.63 In / 295.4 x 200.2 x 92.2 MM |
Cable Capacity | 130 Ft / 39.6 M |
Recommend Cable Size | 7/16 In / 11.1 MM |
Hydraulic Pressure Required | 2,800 PSI (193 Bar) |
Hydraulic Flow Required | 23.0 GPM (87 LPM) |
Motor Size | 6.2 Cu. In. / 102 cc |
Additional Motor Options | Call Factory |
Clutch Type | Blocked, Lever Style |
Clutch Control | Manual |
