Ramsey Winch Wildcat WC 105R Parts

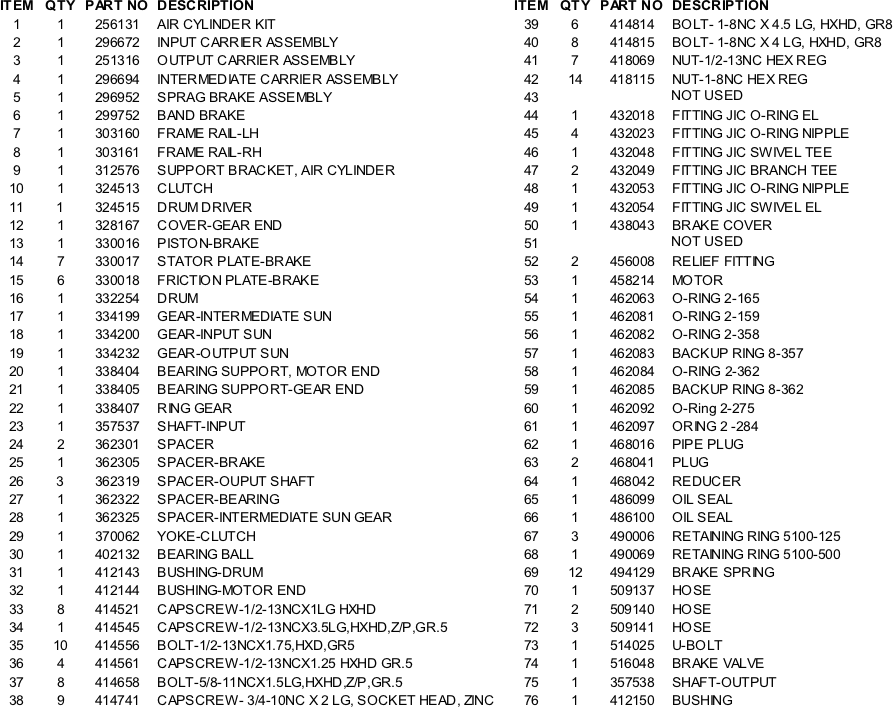

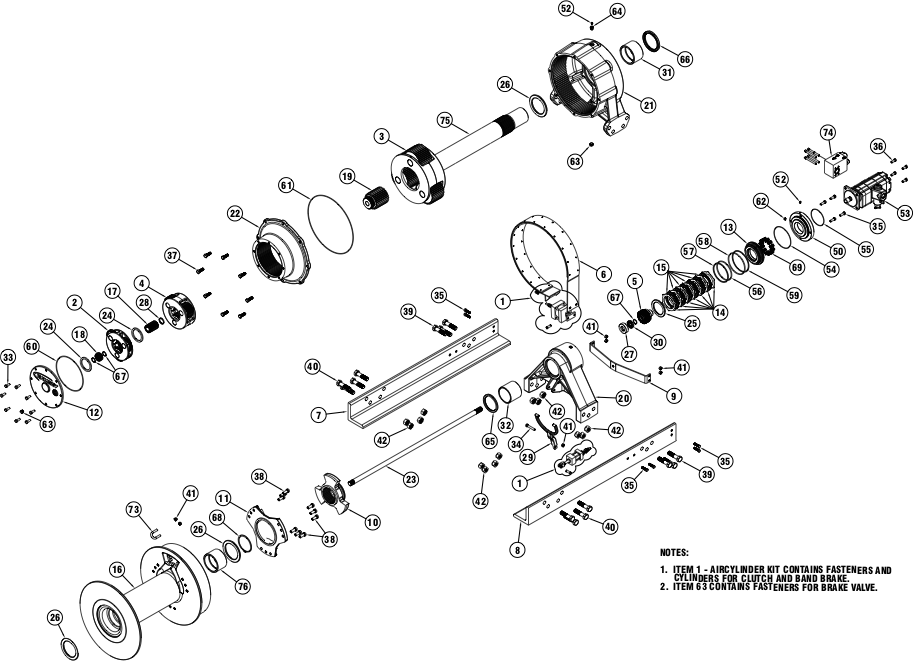

Ramsey Winch Wildcat WC 105R Parts DiagramRamsey Winch Wildcat WC 105R Parts List
Tap or Click Images to Zoom

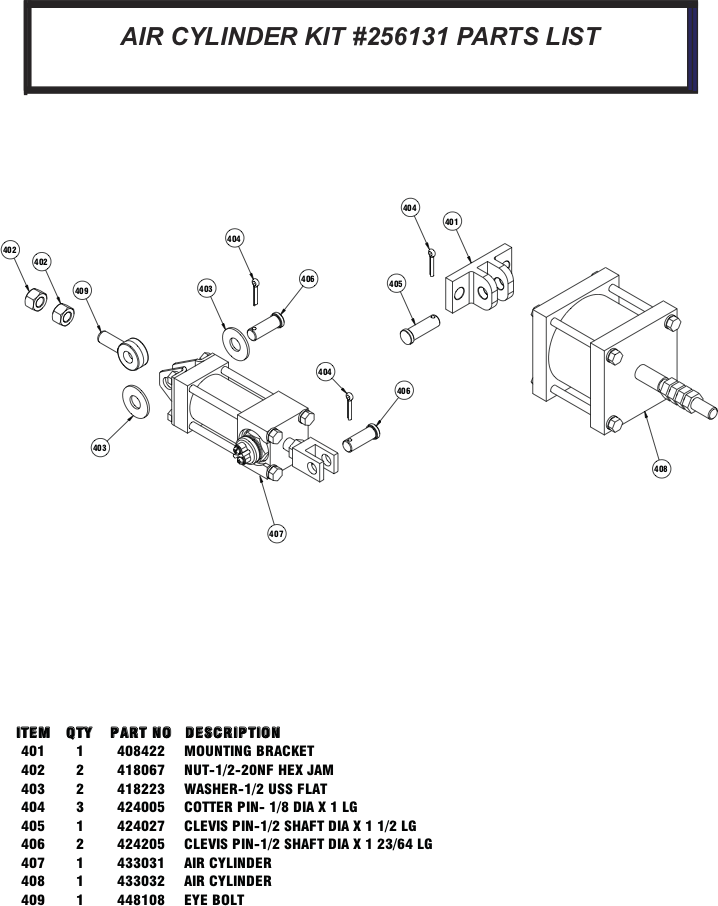

AIR CYLINDER KIT - WILDCAT
AIR CYLINDER KIT - WILDCAT
$874.94 $1,067.00
SKU 256131
SPRAG BRAKE HUB ASSEMBLY
SPRAG BRAKE HUB ASSEMBLY
$469.86 $573.00
SKU 296952
CLUTCH, DRUM SIDE, WILDCAT 100K
CLUTCH, DRUM SIDE, WILDCAT 100K
$432.14 $527.00
SKU 324515
PISTON BRAKE WILDCAT
PISTON BRAKE WILDCAT
$329.64 $402.00
SKU 330016
STATOR PLATE-BRAKE
STATOR PLATE-BRAKE
$9.43 $11.50
SKU 330017
Ramsey Winch
BRAKE FRICTION PLATE
$6.77 $8.25
SKU 330018
SUN GEAR INTERMEDIATE-80K
SUN GEAR INTERMEDIATE-80K
$104.96 $128.00
SKU 334199
SPACER-INPUT PLANETARY-80K
SPACER-INPUT PLANETARY-80K
$264.04 $322.00
SKU 362301
BRAKE SPACER WILDCAT
BRAKE SPACER WILDCAT
$40.80 $49.75
SKU 362305
SPACER-BEARING, WILDCAT 100K
SPACER-BEARING, WILDCAT 100K
$76.26 $93.00
SKU 362322
Ramsey
CLUTCH-YOKE 80K WINCH
$137.76 $168.00
SKU 370062
BALL BEARING 1-1/4 X 2-1/4
BALL BEARING 1-1/4 X 2-1/4
$18.45 $22.50
SKU 402132
BUSHING-DRUM, WILDCAT 100K
BUSHING-DRUM, WILDCAT 100K
$317.34 $387.00
SKU 412143
MOTOR END BUSHING, WILDCAT 100K
MOTOR END BUSHING, WILDCAT 100K
$156.62 $191.00
SKU 412144
CAPSCREW 1/2-13NC X 1LG
CAPSCREW 1/2-13NC X 1LG
$2.26 $2.75
SKU 414521
NUT-1/2-20NF HEX JAM
NUT-1/2-20NF HEX JAM
$2.26 $2.75
SKU 418067
HEX NUT-1/2-13NC
HEX NUT-1/2-13NC
$2.26 $2.75
SKU 418069
COTTER PIN 1/8DIA X 1 LG
COTTER PIN 1/8DIA X 1 LG
$1.23 $1.50
SKU 424005
CLEVIS PIN 1/2 X 1 23/64LG
CLEVIS PIN 1/2 X 1 23/64LG
$4.72 $5.75
SKU 424205
FITTING 7/16-20 90 degree
FITTING 7/16-20 90 degree
$17.20 $21.50
SKU 432018
AIR CYLINDER CLUTCH, ENGAGE/DISENGAGE, WILDCAT SERIES
AIR CYLINDER CLUTCH, ENGAGE/DISENGAGE, WILDCAT SERIES
$366.67 $407.86
SKU 433031
RELIEF FITTING -1/8-27PFT
RELIEF FITTING -1/8-27PFT
$5.40 $6.75
SKU 456008
O-RING
O-RING
$4.72 $5.75
SKU 462063
O-RING 2-159
O-RING 2-159
$2.26 $2.75
SKU 462081
O-RING 2-358
O-RING 2-358
$1.23 $1.50
SKU 462082
BACKUP RING 8-357
BACKUP RING 8-357
$4.72 $5.75
SKU 462083
O-RING 2-362
O-RING 2-362
$2.26 $2.75
SKU 462084
Ramsey Winch Parts
O-Ring 2-275
$2.26 $2.75
SKU 462092
ORING- 18.00 ID X 18.25 OD X .125 THICK, -284
ORING- 18.00 ID X 18.25 OD X .125 THICK, -284
$6.77 $8.25
SKU 462097
PIPE PLUG 1/8-27 NPTF
PIPE PLUG 1/8-27 NPTF
$2.26 $2.75
SKU 468016
PLUG-3/4-16 (-8 SAE) WITH O-RING
PLUG-3/4-16 (-8 SAE) WITH O-RING
$2.26 $2.75
SKU 468041
REDUCER 3/4-16 O-RING X 1/8NPTF
REDUCER 3/4-16 O-RING X 1/8NPTF
$24.40 $29.75
SKU 468042
Ramsey
OIL SEAL
$76.26 $93.00
SKU 486099
OIL SEAL
OIL SEAL
$124.64 $152.00
SKU 486100
RETAINER RING, 1 1/4
RETAINER RING, 1 1/4
$2.26 $2.75
SKU 490006
RING-RETAINER, 5.00 OD SHAFT, TRUARC #5100-500
RING-RETAINER, 5.00 OD SHAFT, TRUARC #5100-500
$21.32 $26.00
SKU 490069
SPRING-BRAKE- 385LB IN/IN
SPRING-BRAKE- 385LB IN/IN
$2.26 $2.75
SKU 494129
U BOLT WIRE ROPE WC 80K
U BOLT WIRE ROPE WC 80K
$76.26 $93.00
SKU 514025
COUNTER BALANCE BLOCK WC
COUNTER BALANCE BLOCK WC
$1,387.44 $1,692.00
SKU 516048
BACKUP RING 8-362
BACKUP RING 8-362
$5.54 $6.75
SKU 462085
