Ramsey Planetary Electric Winch Parts

Ramsey Winch QM 9000 Parts

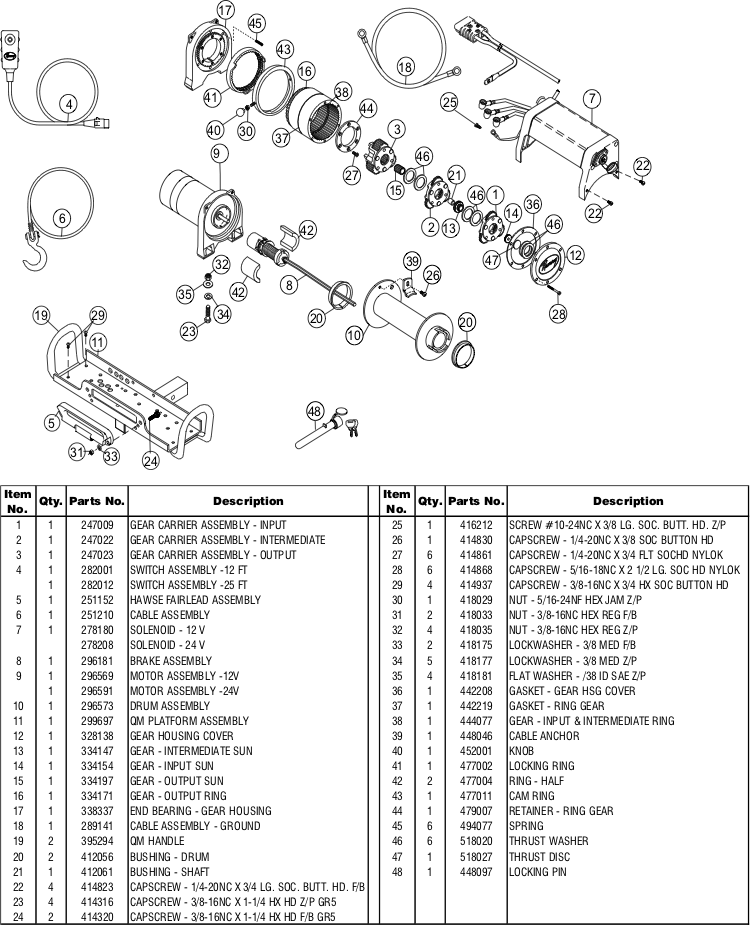

Ramsey Winch QM 9000 Parts DiagramRamsey Winch QM 9000 Solenoid Parts Diagram
Tap or Click Images to Zoom
RAMSEY Connector 430022
CONNECTOR - FEMALE
$27.88 $34.00
SKU 430022
Ramsey Winch Parts
GEAR CARRIER ASSEMBLY-INPUT, REP24-8000
$130.38 $159.00
SKU 247009
Ramsey Winch Parts
GEAR CARRIER ASSY-INTERMEDIATE,PRO9
$130.38 $159.00
SKU 247022
Ramsey Winch Parts
GEAR CARRIER ASSY-OUTPUT, PRO-9000
$307.50 $375.00
SKU 247023
Rasmey
KIT-105' X 5/16, 7X19AC W 3/8 HK
$199.26 $243.00
SKU 251210
Ramsey Winch Parts
WIRE ASSEMBLY GROUND
$67.04 $81.75
SKU 289141
BRAKE ASSEMBLY
BRAKE ASSEMBLY
$131.20 $160.00
SKU 296181
Ramsey Winch Parts
MOTOR-END BEARING ASSEMBLY 3.6HP W/ GROUND
$599.42 $731.00
SKU 296569
ASSY-QM PLATFORM W/LOCKINGPIN QM8/9
ASSY-QM PLATFORM W/LOCKINGPIN QM8/9
$396.88 $484.00
SKU 299697
Ramsey Winch Parts
SOLENOID MTG END CAP LH
$101.68 $124.00
SKU 316103
CAP-END, RH, SOLENOID MTG
CAP-END, RH, SOLENOID MTG
$79.75 $97.25
SKU 316101
Ramsey Winch Parts
GEAR COVER HOUSING, PRO-9000
$130.38 $159.00
SKU 328138
INTERM GEAR / SUN,H/T #682061, REP-8000
INTERM GEAR / SUN,H/T #682061, REP-8000
$16.20 $19.75
SKU 334147
INPUT GEAR
INPUT GEAR
$13.33 $16.25
SKU 334154
Ramsey Winch Parts
OUTPUT GEAR
$33.42 $40.75
SKU 334197
HANDLE-QM, BLACK POWDER COATED
HANDLE-QM, BLACK POWDER COATED
$124.64 $152.00
SKU 395294
DRUM BUSHING
DRUM BUSHING
$6.77 $8.25
SKU 412056
SHAFT BUSHING
SHAFT BUSHING
$5.54 $6.75
SKU 412061
Ramsey Winch
SOLENOID WIRE COVER, PRO PLUS SERIES # 16049D
$11.48 $14.00
SKU 413078
CAPSCREW 3/8-16NC X 1 1/4
CAPSCREW 3/8-16NC X 1 1/4
$1.23 $1.50
SKU 414316
BOLT 3/8-16NC X 1 1/4
BOLT 3/8-16NC X 1 1/4
$2.26 $2.75
SKU 414320
BOLT 1/4-20NC X 3/4LG
BOLT 1/4-20NC X 3/4LG
$1.23 $1.50
SKU 414823
CAPSCREW 1/4-20NC X 3/8
CAPSCREW 1/4-20NC X 3/8
$1.23 $1.50
SKU 414830
BOLT 1/4 X 20NC X 3/4 NY-LOK
BOLT 1/4 X 20NC X 3/4 NY-LOK
$2.26 $2.75
SKU 414861
CAPSCREW-5/16-18NC X 1 1/2
CAPSCREW-5/16-18NC X 1 1/2
$2.26 $2.75
SKU 414880
CAPSCREW-3/8-16 X 3/4
CAPSCREW-3/8-16 X 3/4
$3.49 $4.25
SKU 414937
SCREW #8-32NC X 3/8
SCREW #8-32NC X 3/8
$1.23 $1.50
SKU 416207
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
S-#10-24NCX3/4,TRUSS,CROS-RECES,F/B
$1.23 $1.50
SKU 416227
NUT 5/16-24NF HEX JAM
NUT 5/16-24NF HEX JAM
$2.26 $2.75
SKU 418029
NUT-3/8-16NC,HEX,REG/FORD BLK PLTG
NUT-3/8-16NC,HEX,REG/FORD BLK PLTG
$2.26 $2.75
SKU 418033
NUT-3/8-16NC HEX REG ZINC PLATED
NUT-3/8-16NC HEX REG ZINC PLATED
$1.23 $1.50
SKU 418035
LOCKWASHER 3/8
LOCKWASHER 3/8
$2.26 $2.75
SKU 418175
LOCKWASHER 3/8
LOCKWASHER 3/8
$1.23 $1.50
SKU 418177
WASHER 3/8 ID
WASHER 3/8 ID
$1.20 $1.50
SKU 418181
WIRE ASSY-24 IN.LG, BATT, W/QM-5000
WIRE ASSY-24 IN.LG, BATT, W/QM-5000
$110.70 $135.00
SKU 440180
STRAP-COPPER, PRO PLUS
STRAP-COPPER, PRO PLUS
$10.25 $12.50
SKU 440259
STRAP-COPPER,PRO PLUS
STRAP-COPPER,PRO PLUS
$3.49 $4.25
SKU 440260
SOLENOID-12V
SOLENOID-12V
$36.08 $44.00
SKU 440262
SOLENOID-24V
SOLENOID-24V
$36.90 $45.00
SKU 440265
ASSY-WIRE, GROUND
ASSY-WIRE, GROUND
$19.68 $24.00
SKU 440276
GASKET-GH CVR,.031THK
GASKET-GH CVR,.031THK
$3.49 $4.25
SKU 442208
RING GEAR GASKET
RING GEAR GASKET
$2.05 $2.50
SKU 442219
CABLE ANCHOR FOR 5/16 CABLE, PLANETARY
CABLE ANCHOR FOR 5/16 CABLE, PLANETARY
$10.25 $12.50
SKU 448046
5/8 RECEIVER HITCH PIN, WITH TWO KEYS
5/8 RECEIVER HITCH PIN, WITH TWO KEYS
$49.61 $60.50
SKU 448097
KNOB-LEVER GRAY
KNOB-LEVER GRAY
$12.92 $15.75
SKU 452001
LOCKING RING - RING GEAR
Average rating:
average rating 100%
LOCKING RING - RING GEAR
$42.85 $52.25
SKU 477002
HALF RING, INPUT FRICTION, W/REP-8000
HALF RING, INPUT FRICTION, W/REP-8000
$8.61 $10.50
SKU 477004
CAM RING
CAM RING
$46.33 $56.50
SKU 477011
RETAINER RING GEAR
RETAINER RING GEAR
$11.48 $14.00
SKU 479007
COVER FEMALE RECEPTACLE
COVER FEMALE RECEPTACLE
$6.77 $8.25
SKU 482029
RING GEAR SPRING
RING GEAR SPRING
$2.26 $2.75
SKU 494077
Ramsey Winch Parts
THRUST WASHER-1.39 ID,PLAS,DC PLANE
$3.49 $4.25
SKU 518020
Ramsey Winch Parts
THRUST DISC-.035X.922DIA/ALL PLANET
$2.26 $2.75
SKU 518027
