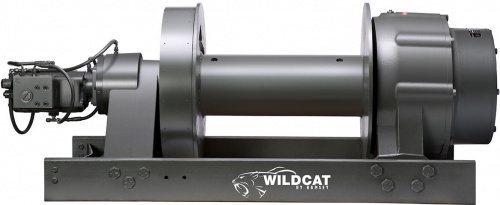

Ramsey Winch - WINCH-WILDCAT 130K, MODEL WC 130R, 2 SPEED

Ramsey Winch - WINCH-WILDCAT 130K, MODEL WC 130R, 2 SPEED
+ Tap or click image to enlarge
Hydraulic Planetary Winch
$30,023.70 $35,322.00
SKU 127302
Free Shipping
Manufacturer Lead Time: 10-12 WEEKS

Product Details

This Winch's Configuration
Drum Width in23.73
ShiftAir
OptionMODEL WC 130R
Option2 SPEED
Series Features
  • 130,000 lbs 1st layer pull
  • 2-Year Warranty
  • Fast line speed
  • Oil-impregnated bronze drum bushings
  • Heavy-duty clutch yoke
  • Heavy-duty shafts
  • Symmetrical design
  • Heavy-duty clutch splined directly to shaft
  • 2 speed gear motor
  • Highly efficient planetary gear set
  • Spring applied hydraulic released brake
  • Sprag clutch
  • Air actuated band brake
  • Clutch indicator switch
  • Oilfield proven free spool clutch
  • Meets SAE-J706
  • Made in the USA

Specifications

Rated Line Pull130,000 Lbs / 58,967 Kg
NoteRated line pull is based on the first layer of cable.
1st Layer Line Speed16 Ft/Min / 4.9 M/Min
Gear Ratio227:1
Weight w/o Cable2,150 Lbs / 975 Kg
BrakeYes
CableNone
Drum Size (L x F x B)23.73 x 24.25 x 9.00 In / 602.7 x 616.0 x 228.6 MM
Cable Capacity465 Ft / 141.7 M
Recommend Cable Size1 1/8 In / 28.6 MM
Hydraulic Pressure Required2,600 PSI (179 Bar)
Hydraulic Flow Required60.0 GPM (227 LPM)
Motor Size10.3 Cu. In. (169 cc)
Additional Motor OptionsNone
Clutch TypeJaw
Clutch ControlAir

Shipping

Warranty

RAMSEY WINCH warrants each new RAMSEY Wildcat Winch to be free from defects in material and workmanship for a period of two (2) years from the date of purchase.
