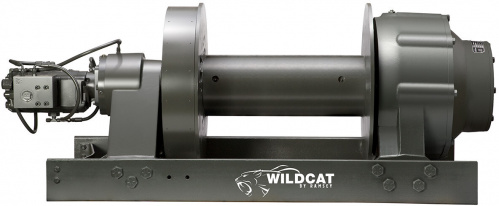

Ramsey Winch - WINCH-WILDCAT 105K, MODEL WC 105R, 2 SPEED

Ramsey Winch - WINCH-WILDCAT 105K, MODEL WC 105R, 2 SPEED
+ Tap or click image to enlarge
Hydraulic Planetary Winch
$24,944.95 $29,347.00
SKU 127252
Free Shipping
Manufacturer Lead Time: 10-12 WEEKS

Product Details

This Winch's Configuration
Drum Width in23.73
ShiftAir
OptionMODEL WC 105R
Option2 SPEED
Series Features
  • 105,000 lbs 1st layer pull
  • 2-Year Warranty
  • Fast line speed
  • Oil-impregnated bronze drum bushings
  • Heavy-duty clutch yoke
  • Heavy-duty shafts
  • Symmetrical design
  • Heavy-duty clutch splined directly to shaft
  • 2 speed gear motor
  • Highly efficient planetary gear set
  • Spring applied hydraulic released brake
  • Sprag clutch
  • Air actuated band brake
  • Clutch indicator switch
  • Oilfield proven free spool clutch
  • Meets SAE-J706
  • Made in the USA

Specifications

Rated Line Pull105,000 Lbs / 47,627 Kg
NoteRated line pull is based on the first layer of cable.
1st Layer Line Speed23 Ft/Min / 7.0 M/Min
Gear Ratio171:1
Weight w/o Cable2,150 Lbs / 975 Kg
BrakeYes
CableNone
Drum Size (L x F x B)23.73 x 24.25 x 9.00 In / 602.7 x 616.0 x 228.6 MM
Cable Capacity465 Ft / 141.7 M
Recommend Cable Size1 1/8 In / 28.6 MM
Hydraulic Pressure Required2,850 PSI (197 Bar)
Hydraulic Flow Required60.0 GPM (227 LPM)
Motor Size9.6 Cu. In. (157 cc)
Additional Motor OptionsNone
Clutch TypeJaw
Clutch ControlAir

Shipping

Warranty

RAMSEY WINCH warrants each new RAMSEY Wildcat Winch to be free from defects in material and workmanship for a period of two (2) years from the date of purchase.
