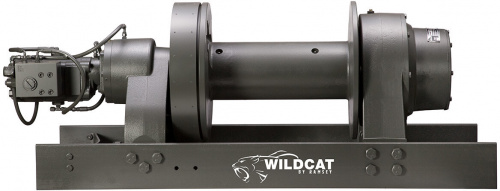

Ramsey Winch - WINCH-WILDCAT 65K, MODEL WC 65R, 2 SPEED

Ramsey Winch - WINCH-WILDCAT 65K, MODEL WC 65R, 2 SPEED
+ Tap or click image to enlarge
Hydraulic Planetary Winch
$24,748.60 $29,116.00
SKU 127152
Free Shipping
Manufacturer Lead Time: 10-12 WEEKS

Product Details

This Winch's Configuration
Drum Width in20
ShiftAir
OptionMODEL WC 65R
Option2 SPEED
Series Features
  • 65,000 lbs 1st layer pull
  • 2-Year Warranty
  • Fast line speed
  • Oil-impregnated bronze drum bushings
  • Heavy-duty clutch yoke
  • Heavy-duty shafts
  • Symmetrical design
  • Heavy-duty clutch splined directly to shaft
  • 2 speed gear motor
  • Highly efficient planetary gear set
  • Spring applied hydraulic released brake
  • Sprag clutch
  • Air actuated band brake
  • Clutch indicator switch
  • Oilfield proven free spool clutch
  • Meets SAE-J706
  • Made in the USA

Specifications

Rated Line Pull65,000 Lbs / 29,483 Kg
NoteRated line pull is based on the first layer of cable.
1st Layer Line Speed34 Ft/Min / 10.4 M/Min
Gear Ratio87:1
Weight w/o Cable1,305 Lbs / 592 Kg
BrakeYes
CableNone
Drum Size (L x F x B)19.38 x 19.00 x 8.00 In / 492.3 x 482.6 x 203.2 MM
Cable Capacity215 Ft / 65.5 M
Recommend Cable Size1 In / 25.4 MM
Hydraulic Pressure Required2,600 PSI (179 Bar)
Hydraulic Flow Required60.0 GPM (227 LPM)
Motor Size10.9 Cu. In. (179 cc)
Additional Motor OptionsNone
Clutch TypeJaw
Clutch ControlAir

Shipping

Warranty

RAMSEY WINCH warrants each new RAMSEY Wildcat Winch to be free from defects in material and workmanship for a period of two (2) years from the date of purchase.
