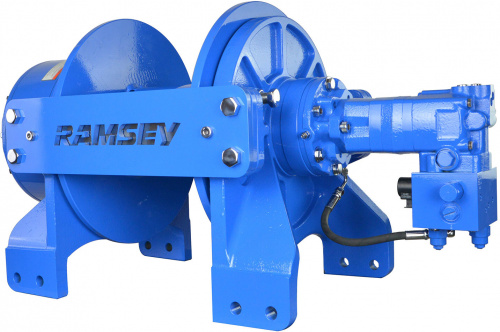

Ramsey Winch - Hercules Two-Speed WINCH-HERC 50000, LH, 2 SPD, 12V, STD AIR ROLLER TENSIONER
+ Tap or click image to enlarge
Hydraulic Planetary Winch
$16,382.90
$19,274.00
SKU 127400
Manufacturer Lead Time: 10 Weeks
Product Details
| This Winch's Configuration | |
|---|---|
| Option | LH |
| Option | 2 SPD |
| Option | 12V |
| Option | STD AIR ROLLER TENSIONER |
- Rated Line pull 50,000 lbs
- Less weight – only 740 lbs.
- Fast line speed
- Compact design
- Negative draft sliding clutch design
- Internal air-shift free spool
- Low temperature shifting (down to -40F/C)
- High efficiency gear set
- Superior cable management
- Two speed motor
- Fabricated drum
- Bi-directional winch
- Optional "high angle" roller tensioner
- Meets SAE J706
- Made in the USA
Ramsey Winches are usually built to order. It may be up to 4 weeks for an order to be shipped. If you need more information please contact us.
Specifications
| Rated Line Pull | 50,000 Lbs / 22,680 Kg |
| 1st Layer Line Speed | 20 Ft/Min / 6.1 M/Min |
| Note | Rated line pull is based on the first layer of cable. |
| Gear Ratio | 51.35:1 |
| Weight w/o Cable | 740 Lbs / 336 Kg |
| Brake | Yes |
| Cable | None |
| Drum Size (L x F x B) | 11.54 x 18.25 x 7.00 In / 293.1 x 463.6 x 177.8 MM |
| Cable Capacity | 250 Ft / 76.2 M |
| Recommend Cable Size | 3/4 In / 19.1 MM |
| Hydraulic Pressure Required | 2,900 PSI (200 Bar) |
| Hydraulic Flow Required | 25.0 GPM (94.6 LPM) |
| Motor Size | 11.9 Cu. In. (195 cc) |
| Additional Motor Options | Call Factory |
| Clutch Type | Sliding |
| Clutch Control | Air |
