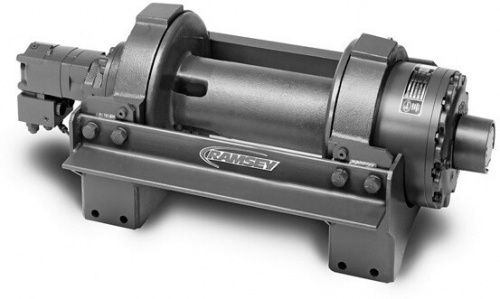

Ramsey Winch - RPH 35000, Bi-Rotation
+ Tap or click image to enlarge
Hydraulic Worm Gear Winch
$11,924.65
$14,029.00
SKU 123705
Manufacturer Lead Time: 10 Weeks
Product Details
| This Winch's Configuration | |
|---|---|
| Option | Bi-Rotation |
- Rated Line pull 35,000 lbs
- Standard Drum
- Recommended cable 3/4"
- Meets SAE J706
- Made in the USA
Ramsey Winches are usually built to order. It may be up to 4 weeks for an order to be shipped. If you need more information please contact us.
Specifications
| Rated Line Pull | 35,000 Lbs / 15,876 Kg |
| Note | Rated line pull is based on the first layer of cable. |
| 1st Layer Line Speed | 15.4 Ft/Min / 4.7 M/Min |
| Gear Ratio | 31.89:1 |
| Weight w/o Cable | 504 Lbs / 229 Kg |
| Brake | Yes |
| Cable | None |
| Drum Size (L x F x B) | 13.33 x 14.88 x 6.00 In / 338.6 x 378.0 x 152.4 MM |
| Cable Capacity | 200 Ft / 61.0 M |
| Recommend Cable Size | 3/4 In / 19.1 MM |
| Hydraulic Pressure Required | 2,650 PSI (183 Bar) |
| Hydraulic Flow Required | 15.0 GPM (57 LPM) |
| Motor Size | 11.9 Cu. In. (195 cc) |
| Additional Motor Options | Call Factory |
| Clutch Type | Sliding Spline |
| Clutch Control | Air |
