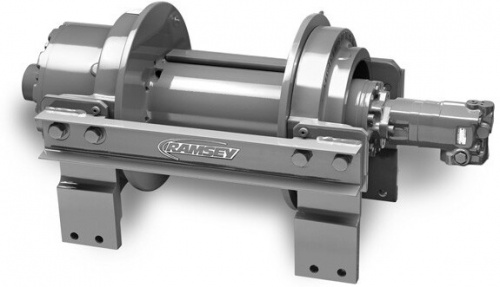

Ramsey Winch - RPH 50,000 Air Shift, Left Hand, Single Speed Motor
+ Tap or click image to enlarge
Hydraulic Worm Gear Winch
$16,698.25
$19,645.00
SKU 123607
Manufacturer Lead Time: 10 Weeks
Product Details
| This Winch's Configuration | |
|---|---|
| Option | Left Hand |
| Option | Single Speed Motor |
- Rated Line pull 50,000 lbs
- Standard Drum
- Recommended cable 7/8"
- Meets SAE J706
- Made in the USA
Ramsey Winches are usually built to order. It may be up to 4 weeks for an order to be shipped. If you need more information please contact us.
Specifications
| Rated Line Pull | 50,000 Lbs / 22,680 Kg |
| Note | Rated line pull is based on the first layer of cable. |
| 1st Layer Line Speed | 23 Ft/Min / 7.0 M/Min |
| Gear Ratio | 51.35:1 |
| Weight w/o Cable | 689 Lbs / 313 Kg |
| Brake | Yes |
| Cable | None |
| Drum Size (L x F x B) | 14.50 x 16.00 x 7.00 In / 368.3 x 406.4 x 177.8 MM |
| Cable Capacity | 220 Ft / 67.1M |
| Recommend Cable Size | 7/8 In / 22.2 MM |
| Hydraulic Pressure Required | 3,000 PSI (207 Bar) |
| Hydraulic Flow Required | 25.0 GPM (94.6 LPM) |
| Motor Size | 9.6 Cu. In. (157 cc) |
| Additional Motor Options | Call Factory |
| Clutch Type | Sliding Spline |
| Clutch Control | Air |
