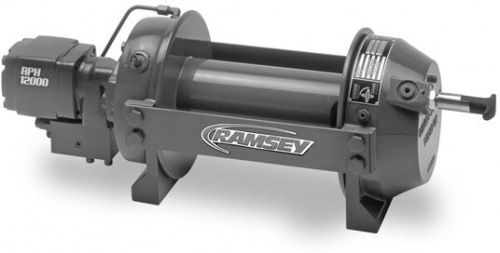

Ramsey Winch - RPH 12,000 Air Shift, Single Speed Motor
+ Tap or click image to enlarge
Hydraulic Planetary Winch
$3,210.45
$3,777.00
SKU 123302
Manufacturer Lead Time: 10 Weeks
Product Details
| This Winch's Configuration | |
|---|---|
| Option | Single Speed Motor |
- Rated Line pull 12,000 lbs
- Standard Drum
- Recommended cable 7/16"
- Available with air shift
- Meets SAE J706
- Made in the USA
Ramsey Winches are usually built to order. It may be up to 4 weeks for an order to be shipped. If you need more information please contact us.
Specifications
| Rated Line Pull | 12,000 Lbs / 5,443 Kg |
| Note | Rated line pull is based on the first layer of cable. |
| 1st Layer Line Speed | 32 Ft/Min / 9.7 M/Min |
| Gear Ratio | 5.1:1 |
| Weight w/o Cable | 110 Lbs / 50 Kg |
| Brake | Yes |
| Cable | None |
| Drum Size (L x F x B) | 9.75 x 9.00 x 3.94 In / 247.7 x 228.6 x 100.1 MM |
| Cable Capacity | 160 Ft / 48.8 M |
| Recommend Cable Size | 7/16 In / 11.1 MM |
| Hydraulic Pressure Required | 2,500 PSI (172 Bar) |
| Hydraulic Flow Required | 15.0 GPM (57 LPM) |
| Motor Size | 24.0 Cu. In. (393 cc) |
| Additional Motor Options | None |
| Clutch Type | Sliding Pin |
| Clutch Control | Air, Manual |
