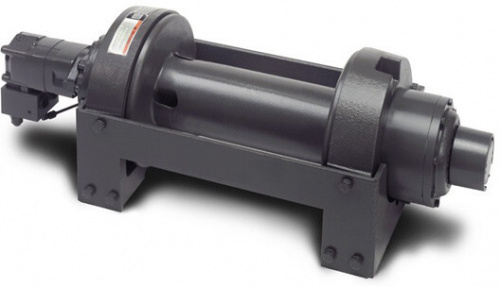

Ramsey Winch - RPH 20,000 Air Shift, Left Hand, Single Speed Motor

Ramsey Winch - RPH 20,000 Air Shift, Left Hand, Single Speed Motor
+ Tap or click image to enlarge
Hydraulic Planetary Winch
$8,433.70 $9,922.00
SKU 123213
Free Shipping
Manufacturer Lead Time: 10 Weeks

Product Details

This Winch's Configuration
OptionLeft Hand
OptionSingle Speed Motor
Series Features
  • Rated Line pull 20,000 lbs
  • Standard Drum
  • Recommended cable 9/16"
  • Meets SAE J706
  • Made in the USA

Ramsey Winches are usually built to order. It may be up to 4 weeks for an order to be shipped. If you need more information please contact us.

Specifications

Rated Line Pull20,000 Lbs / 9,072 Kg
NoteRated line pull is based on the first layer of cable.
1st Layer Line Speed26 Ft/Min / 7.9 M/Min
Gear Ratio25.53:1
Weight w/o Cable375 Lbs / 170 Kg
BrakeYes
CableNone
Drum Size (L x F x B)15.00 x 12.13 x 5.69 In / 381.0 x 308.1 x 144.5 MM
Cable Capacity265 Ft / 80.8 M
Recommend Cable Size9/16 In / 14.3 MM
Hydraulic Pressure Required2,500 PSI (172 Bar)
Hydraulic Flow Required15.0 GPM (57 LPM)
Motor Size8.0 Cu. In. (131 cc)
Additional Motor OptionsCall Factory
Clutch TypeSliding Spline
Clutch ControlAir

Shipping

Warranty

RAMSEY WINCH warrants each new RAMSEY Winch to be free from defects in material and workmanship for a period of one (1) year from date of purchase.
