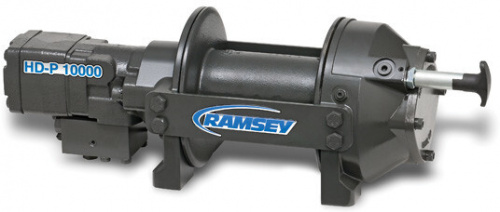

Ramsey Winch - HD-P 10000, AYCP, Valve Up, CE
+ Tap or click image to enlarge
Hydraulic Planetary Winch
$2,559.35
$3,011.00
SKU 123159
Manufacturer Lead Time: 10 Weeks
Product Details
| This Winch's Configuration | |
|---|---|
| Drum Width (in/mm) | 6.5/165 |
| Shift | Air |
| Indicator Light | No |
| Drum Rotation | CW |
| Drum Barrel Diameter (in/mm) | 3.94/100 |
| Option | AYCP |
| Option | Valve Up |
| Option | CE |
- Rated Line pull 10,000 lbs
- Short Drum
- Recommended cable 7/16”
- Available with a Blocked Clutch
- Available with air shift
- Meets SAE J706
- Made in the USA
Ramsey Winches are usually built to order. It may be up to 4 weeks for an order to be shipped. If you need more information please contact us.
Specifications
| Rated Line Pull | 10,000 Lbs / 4,536 Kg |
| Note | Rated line pull is based on the first layer of cable. |
| 1st Layer Line Speed | 32 Ft/Min / 9.7 M/Min |
| Gear Ratio | 5.1:1 |
| Weight w/o Cable | 82 Lbs / 37 Kg |
| Brake | Yes |
| Cable | None |
| Drum Size (L x F x B) | 6.50 x 8.25 x 3.94 In / 165.1 x 209.6 x 100.1 MM |
| Cable Capacity | 75 Ft / 22.9 M |
| Recommend Cable Size | 7/16 In / 11.1 MM |
| Hydraulic Pressure Required | 2,100 PSI (145 Bar) |
| Hydraulic Flow Required | 15.0 GPM (57 LPM) |
| Motor Size | 24.9 Cu. In. (408 cc) |
| Additional Motor Options | None |
| Clutch Type | Sliding Pin |
| Clutch Control | Air, Manual |
