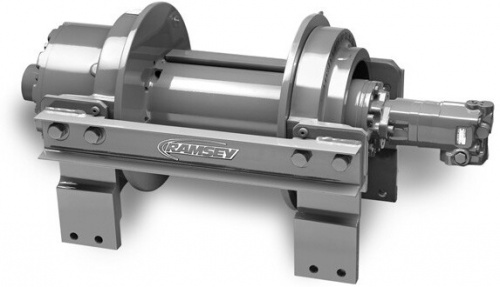

Ramsey Winch - RPH 45,000 Air Shift, Left Hand, Single Speed Motor
+ Tap or click image to enlarge
Hydraulic Worm Gear Winch
$16,124.50
$18,970.00
SKU 121965
Manufacturer Lead Time: 10 Weeks
Product Details
| This Winch's Configuration | |
|---|---|
| Option | Left Hand |
| Option | Single Speed Motor |
- Rated Line pull 45,000 lbs
- Standard Drum
- Recommended cable 3/4"
- Meets SAE J706
- Made in the USA
Ramsey Winches are usually built to order. It may be up to 4 weeks for an order to be shipped. If you need more information please contact us.
Specifications
| Rated Line Pull | 45,000 Lbs / 20,412 Kg |
| Note | Rated line pull is based on the first layer of cable. |
| 1st Layer Line Speed | 23 Ft/Min / 7.0 M/Min |
| Gear Ratio | 51.35:1 |
| Weight w/o Cable | 689 Lbs / 313 Kg |
| Brake | Yes |
| Cable | None |
| Drum Size (L x F x B) | 14.50 x 16.00 x 7.00 In / 368.3 x 406.4 x 177.8 MM |
| Cable Capacity | 310 Ft / 94.5 M |
| Recommend Cable Size | 3/4 In / 19.1 MM |
| Hydraulic Pressure Required | 2,800 PSI (193 Bar) |
| Hydraulic Flow Required | 25.0 GPM (94.6 LPM) |
| Motor Size | 9.6 Cu. In. (157 cc) |
| Additional Motor Options | Call Factory |
| Clutch Type | Sliding Spline |
| Clutch Control | Air |
