Ramsey Winch - Patriot 15000 R 24V, CE, with 12 ft. wire pendant

Ramsey Winch - Patriot 15000 R 24V, CE, with 12 ft. wire pendant
+ Tap or click image to enlarge
Planetary Electric Winch with 15,000 lb Line Pull
$2,977.55 $3,503.00
SKU 109190
Free Shipping
Manufacturer Lead Time: 3-10 Weeks

Product Details

  • Efficient 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power
  • Proven three-stage planetary gear system design for fast line speed
  • Motor and solenoids are grounded directly to battery
  • Strong automatic load-holding brake for strength
  • Weather resistant solenoid assembly
  • Cam action clutch disengages planetary gear system for free spooling
  • 12 ft. pendant or the patented (US # 6,995,682) wireless remote
  • 6 ft. (1,83 M) 2 gauge battery cables with connectors
  • 4-way roller fairlead
  • Limited lifetime warranty
  • Made in the USA

Specifications

Rated Line Pull15,000 Lbs / 6,804 Kg
NoteRated line pull is based on the first layer of cable. Rated line speed is based on cable with No Load.
Gear Ratio251:1
BrakeYes
CableIncludes Cable
Drum Size (L x F x B)8.00 x 8.00 x 3.50 In / 203.2 x 203.2 x 88.9 MM
Cable Capacity90 Ft / 27.4 M
Recommend Cable Size7/16 In / 11.1 MM
1st Layer Line Speed25 Ft/Min / 7.6 M/Min
Motor Output5.5 HP
Motor TypeSeries Wound
Voltage12V, 24V
FairleadRoller
Clutch TypePull and Rotate
Clutch ControlManual
Weight w/o Cable120 Lbs / 54 Kg

Shipping

Warranty

Ramsey Winch offers a limited lifetime warranty for each new Ramsey ATV winch against manufacturing defects in workmanship and materials on all manufactured components.

Additional items you might be interested in

WC2556A

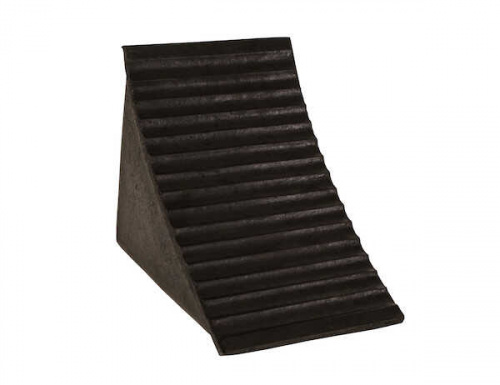

Wheel Chock Rubber 10inX7inX8in
