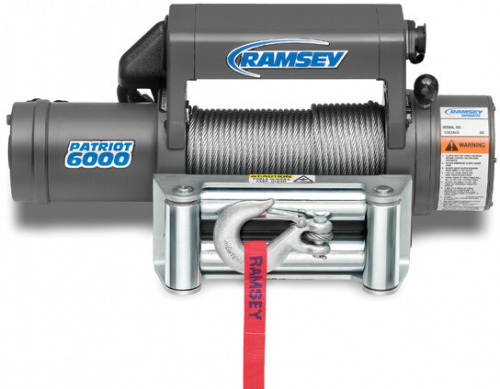

Ramsey Winch - Patriot 6000 R 12V with 12 ft. wire pendant
+ Tap or click image to enlarge
Planetary Electric Winch with 5,000 lb Line Pull
$1,728.90
$2,034.00
SKU 109157
Manufacturer Lead Time: 3-10 Weeks
Product Details
- Efficient series wound electric reversible motor
- Proven three-stage planetary gear system, designed for fast line speed
- Motor and solenoids are grounded directly to battery
- Strong automatic load-holding brake for strength
- Weather resistant solenoid assembly
- Cam action clutch disengages planetary gear system for free spooling
- Includes either a 12 ft. pendant or the patented (US # 6,995,682) wireless remote
- 6 ft. (1,83 M) 2 gauge battery cables with connectors
- 4-way roller fairlead
- Limited lifetime warranty
- Made in the USA
Specifications
| Rated Line Pull | 6,000 Lbs / 2,722 Kg |
| Note | Rated line pull is based on the first layer of cable. Rated line speed is based on cable with No Load. |
| 1st Layer Line Speed | 45 Ft/Min / 13.7 M/Min |
| Gear Ratio | 90:1 |
| Weight w/o Cable | 84 Lbs / 38 Kg |
| Brake | Yes |
| Cable | Includes Cable |
| Drum Size (L x F x B) | 9.00 x 5.50 x 2.50 In / 229 x 140 x 64 MM |
| Cable Capacity | 100 Ft / 30.5 M |
| Recommend Cable Size | 1/4 In / 6.4 MM |
| Motor Output | 5.5 HP |
| Motor Type | Series Wound |
| Voltage | 12V, 24V |
| Fairlead | Roller |
| Clutch Type | Cam Action |
| Clutch Control | Manual |
