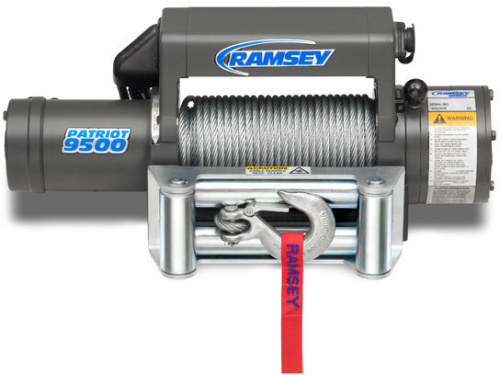

Ramsey Winch - Patriot 9500 R 12V with 12 ft. wire pendant

Ramsey Winch - Patriot 9500 R 12V with 12 ft. wire pendant
+ Tap or click image to enlarge
Planetary Electric Winch with 9,500 lb Line Pull
$1,774.80 $2,088.00
SKU 109153
Free Shipping
Manufacturer Lead Time: 3-10 Weeks

Product Details

  • Efficient 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power
  • Proven three-stage planetary gear system designed for fast line speed
  • Motor and solenoids are grounded directly to battery
  • Strong automatic load-holding brake for strength
  • Weather resistant solenoid assembly
  • Cam action clutch disengages planetary gear system for free spooling
  • The Patriot Profile Series comes with either a 12 ft. pendant or the patented (US # 6,995,682) wireless remote
  • 6 ft. (1,83 M) 2 gauge battery cables with connectors
  • 4 roller fairlead
  • Limited lifetime warranty
  • Made in the USA

Specifications

Rated Line Pull9,500 Lbs / 4,309 Kg
NoteRated line pull is based on the first layer of cable. Rated line speed is based on cable with No Load.
Gear Ratio138:1
BrakeYes
CableIncludes Cable
Drum Size (L x F x B)9.00 x 5.50 x 2.50 In / 229 x 140 x 64 MM
Cable Capacity105 Ft / 32.0 M
Recommend Cable Size5/16 In / 7.9 MM
1st Layer Line Speed35.4 Ft/Min / 10.8 M/Min
Motor Output5.5 HP
Motor TypeSeries Wound
Voltage12V, 24V
FairleadRoller
Clutch TypeCam Action
Clutch ControlManual
Weight w/o Cable92 Lbs / 42 Kg

Shipping

Warranty

Ramsey Winch offers a limited lifetime warranty for each new Ramsey ATV winch against manufacturing defects in workmanship and materials on all manufactured components.
