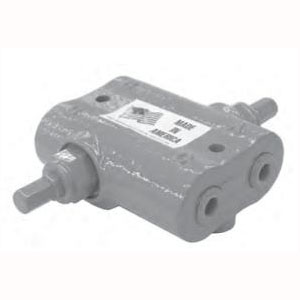

Cushion Valve DRV-2HH
Product Details
SPECIFICATIONS
Pressure Rating
Maximum Operating Pressure ........ 3000 psi
Adjustment Range ............ 500 psi to 3000 psi
Flow Rating .....................................30 GPM
Filtration: For general purpose valves, fluid
cleanliness should meet the ISO 4406 19/17/14
level
Maximum Operating Temp................180°F
Weight .................................... Approx 5.5 Ibs
MODEL NUMBER | MODEL NUMBER | VALVE TYPE | RELIEF SETTING | PORT SIZE |
RV-1H |
DRV-1HH |
ADJUSTABLE 1500-3000 PSI |
2000 PSI @ 10 GPM |
#12 SAE |
RV-2H | DRV-2HH |
ADJUSTABLE 1500-3000 PSI |
2000 PSI @ 10 GPM |
3/4” NPTF |
RV-4H |
DRV-4HH |
ADJUSTABLE 1500-3000 PSI |
2000 PSI @ 10 GPM |
1/2” NPTF |
RV-2L | DRV-2LL |
ADJUSTABLE 500-1500 PSI |
1000 PSI @ 10 GPM |
3/4” NPTF |
