8 BOLT SPLITSHAFT 14000 LB FT

MUNCIE POWER
+ Tap or click image to enlarge

MUNCIE SPLIT SHAFT PTO
$7,698.48 $13,686.18
SKU SS88-14X5-A00XXX
Free Shipping
Call To Order
1-866-658-7952

Product Details

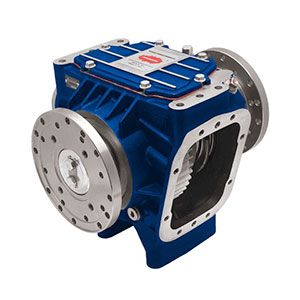

MUNCIE 8 BOLT SPLITSHAFT

Muncies new Auxiliary Power Drive SS88 Series Splitshaft PTO allows for mounting of two 8-bolt type PTOs behind the transmission on medium duty and heavy duty vehicles.

Our SS88 has two through shaft torque options available; the 14,000 lb. ft. rating and the 21,000 lb. ft. rating. The PTO drive gear in the SS88 is a high quality, 6-pitch spur gear that can handle the torque ratings of the large 8-bolt PTOs like the Muncie 82 series.

The through shaft is air or hydraulic shift-able to disengage the rear axle to allow for stationary operation; PTOs can be mechanically shifted, air-mechanically shifted and/or air-clutch shifted (depending on the series specified).

  • High Through Torque Capacity (14,000 lbs.ft. or 21,000 lbs.ft.)
  • Two SAE 8-Bolt Aperatures
  • Air or Hydraulic Shift
  • High Quality, 6-Pitch Spur Gear
  • Compact Design
  • Durable Components Common to other Muncie Split Shaft Products



SS88 Construction

Specifications

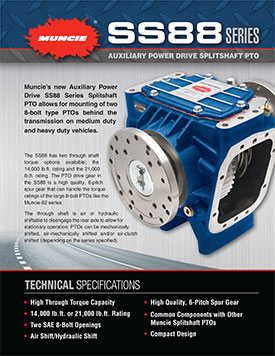

Muncie SS88 Literature

Shipping

Warranty

The Muncie Power Take-Off is warranted to be free of defects in material or workmanship and to meet Muncie Power Products' standard written specifications at the time of sale. Muncie Power Products' obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie Power Products' option, within one year (two years on Allison World Transmission PTO's) after date of original installation any defective part or parts or any product not meeting the specifications.

This Warranty is in lieu of all other warranties, expressed or implied. Muncie Power Products makes no warranty of merchantability or of fitness for any particular purpose. Muncie Power Products' obligation under this warranty shall not include any transportation charges or costs of installation or any liability for direct, indirect, special, incidental, or consequential damages or delay. The remedies set forth herein are exclusive, and Muncie Power Products' liability with respect to any contract or sale or anything done in connection therewith, whether in contract, in tort, under any warranty, or otherwise, shall not, except as expressly provided herein, exceed the price of the product or part on which such liability is based.

If requested by Muncie Power Products, products or parts for which a warranty claim is made are to be returned transportation prepaid to Muncie Power Products. Any installation or use not in accordance with catalogue or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie Power Products, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration, or repair made to the Power Take-Offother than at Muncie Power Products shall void this warranty. No employee or representative of Muncie Power Products is authorized to change this warranty in any way or to grant any other warranty.
