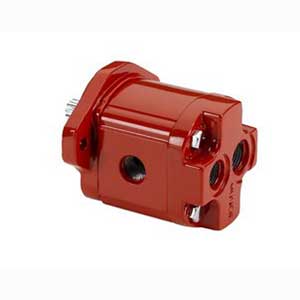

MUNCIE DIRECT OR REMOTE MOUNT PUMP (SAE A FLANGE) REAR PORTS ONLY PF4-606-16ASR_
Product Details
Key Features / Benefits:
- 12 pump sizes from .24 to 2.01 cu. in. (1.0 to 8.7 GPM @ 1000 RPM): Fit a wide variety of applications
- Pressure to 3625 PSI: High pressure capability
- Speeds to 4000 RPM: Application versatility
- Extruded high tensile aluminum housing: Long life, capable of high PSI
- Solid, one piece shafts: Stronger
- Pressure balanced wear plates: High efficiency
- PTFE impregnated bushings: Long life
- Side or rear porting: Installation flexibility
Common Applications:
- Contractor dump bodies
- Tow & recovery vehicles
- Lift gates
- Snow & ice control
- Small utility equipment
Specifications:
- Displacement (cu. in./rev.): .24 - 2.01
- Maximum Operating Pressure (PSI): 3625
- Input Shaft Options: 1
- S.A.E. Mounting Flange: A
- Other Mounting Options: Thru-bolt
- Porting: S.A.E. o-ring (side and rear)
Shipping
Warranty
The Muncie Hydraulic Pump or Motor is warranted against any defect in material and workmanship which existed at the time of sale by Muncie Power Products, according to the following provisions, subject to the requirements that the pump or motor must be used only in accordance with catalogue and package instructions.
The Pump or Motor is warranted for a period of one year from the date of installation. If during the warranty period the Pump or Motor fails to operate to Muncie Power Products' specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie Power Products, the defective part will be repaired or replaced, at Muncie Power Products' election, at no charge, if the defective part is returned to Muncie Power Products with transportation prepaid.
WARNING: The above warranty shall terminate if any alterations or repairs are made to the pump or motor other than at Muncie Power Products, or if the pump or motor is used on any equipment other than the equipment upon which it is first installed.
The foregoing warranty is in lieu of all other obligations and liabilities, including negligence and all warranties of merchantability and suitability, expressed or implied, and state Muncie Power Products' entire and exclusive liability and buyer's exclusive remedy for any claim of damages in connection with the sale, repair or replacement of the above goods, their design, installation or operation. Muncie Power Products will in no event be liable for any direct, indirect, special, incidental or consequential damages whatsoever, and our liability under no circumstances will exceed the contract price for the goods for which liability is claimed.
