GoJak Model 5211
GoJak® Model 5211
Product Details
GoJak® Model 5211

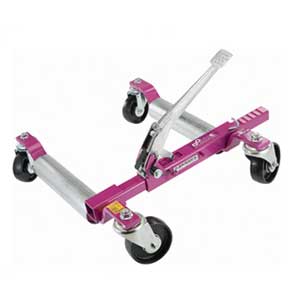

The GoJak® is a mechanical lift & dolly allowing 1-2 people to safely move a vehicle on a smooth level surface. The rollers touch only the tire – no contact with the vehicle’s frame or undercarriage is necessary. A purely mechanical design eliminates the need for electric power, compressed air or slow and leaky hydraulics. The 40-GJ5211 can lift and move wheel weights up to 1,300 lbs (up to 5,200 lbs with four units) and tires up to 11” wide and 34” tall. The 40-GJ6313 can lift and move wheel weights up to 1,574 lbs (up to 6,300 lbs with four units) and tires up to 13” wide and 36” tall. Both feature heavy duty welded construction, heavy duty industrial casters and wheels and a powder coat finish.
• Available in right or left hand models
• Complete line of replacement parts is also available.
• For effective use of this product, a minimum of 2 GoJaks are required.
Specifications
Model 5000
Weight Capacity 4 Units: 5000lb
Weight Capacity Per Unit: 1250lb
Tire Diameter: 32"
Tire Widths: 9"
Under Jack Clearance: .75"
Rollers: 2 PVC
Casters: 4 - 4"
How To Use
Body Shops
MOVE DISABLED VEHICLES, EASILY SIDELOAD SPRAY BOOTHS AND TIGHT WORK AREAS. BRING IN WRECKS IN LESS TIME WITH FEWER PEOPLE.
Towing Companies
ALIGN CARS FOR TOW HOOK UPS. LOAD AND UNLOAD FLATBED TRUCKS. SAVE SPACE IN STORAGE LOTS. GREAT FOR FRONT WHEEL DRIVES.
Showrooms
EFFORTLESSLY POSITION CARS ON SHOWROOM FLOORS, EVEN ON TILE, WOOD OR LOW PILE CARPETING. NO MORE FUMES, NOISE OR CONFUSION.
Classic Cars
STORE OR POSITION YOUR CLASSIC WITHOUT WORRY. GOJAKS®CONTACT ONLY THE TIRES, VIRTUALLY ELIMINATING POSSIBLE DAMAGE.
Mechanical Shops
EASILY MOVE CARS WITH DRIVETRAIN AND OTHER PROBLEMS. GOJAKS® ARE ESPECIALLY HANDY IN SMALL SHOPS AND CONFINED SPACES.
Parking Garages
MOVE LOCKED OR BLOCKED CARS IN SECONDS. NO NEED TO ENTER THE CAR, UNLOCK BRAKES, STEERING WHEEL OR TRANSMISSION.
ALSO USED IN:
STORAGE LOTS, BOAT SHOWROOMS, AIRCRAFT HANGERS, UTILITY COMPANY GARAGES, RESTORATION SHOPS.
Shipping
Warranty
GoJak®’s limited warranty is for a full two years from date of purchase covering factory defects in material and workmanship.
