FISHER PS BLADE WING, XLS 50648

How To Use

1. Start with the wing partially extended (mid-stroke).
2. Remove the slide box stop bolt.
3. Remove both hoses and fittings from the slide box cylinder.
4. Cap off ports to prevent contamination.
5. Remove the cylinder pin, located next to the fittings.
6. Pull the wing and slide box assembly out of the blade frame.
7. Remove the retainer nut from the wing spring eyebolt and remove.
8. Remove the wing pin and slide box from the wing assembly.
9. Remove cylinder rod-end pin.

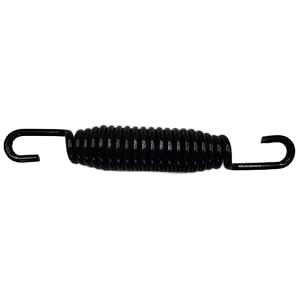

Spring Adjustment
Proper spring tension is obtained by tightening the eyebolt retainer Nut until 3⁄4" of threads are exposed beyond the top of the locknut.

Cutting Edge Removal
Remove wing stop bolt and extend wing all the way to remove blade/cutting edge(s).
