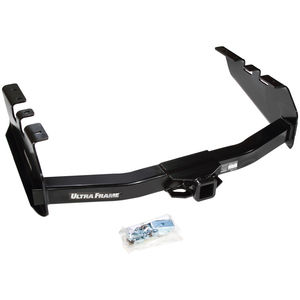

41932 RECEIVER - ULTRA FRAME - DRAW-TITE
Product Details
Class IV hitches are very similar to Class III hitches except for the weight ratings.
Class IV hitches are Weight Carrying (WC) and Weight Distributing (WD) hitches depending on the vehicle and hitch specifications. Not all Class IV hitches are rated to be both. The hitch specifications will alert you to a hitch that is not weight distributing.
Class IV Ultra Frame Receivers from Draw-Tite have a Weight Carrying rating up to 16,000 lbs. Gross Trailer Weight (WCGTW) with a maximum trailer Tongue Weight (WCTW) of 1,950 lbs. depending on the model. Ultra Frames that are used for Weight Distributing are rated up to 16,000 lbs. Weight Distributing Gross Trailer Weight (WDGTW) with a maximum trailer Weight Distributing Tongue Weight (WDTW) of 1,600 lbs. depending on the model. See Product Specifications below for the exact rating of your particular hitch.
This style of hitch typically uses a 2" square receiver opening. The use of a ball mount and hitch ball of the same rating or higher is required to achieve maximum towing capacity. To use the weight distribution side of the hitch a weight distribution system is required.
Class IV hitches attach to the vehicle frame only.
| Description: | Ultra Frame Receiver |
| Finish: | Black Powder Coat |
| Warranty: | Limited Lifetime |
| Weight Carrying: | 1,200/12,000 lbs. (TW/GTW) |
| Weight Distributing: | 1,400/14,000 lbs. (TW/GTW) |
| Package Type: | Bulk |
| Shipping Weight: | 73 lbs. |
| Shipping Size: | 45" L x 30.5" W x 10.5" H |
| UPC: | 742512419320 |
| Year | Make/Model/Style | Install | |
| 1999 - 2002 | Chevrolet, Pickup, Silverado, 1500 LD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 1999 - 2002 | Chevrolet, Pickup, Silverado, 1500 LD 8 ft. Bed, 2 & 4 WD | 20 min | |
| 1999 - 2002 | Chevrolet, Pickup, Silverado, 2500 LD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 1999 - 2002 | Chevrolet, Pickup, Silverado, 2500 LD 8 ft. Bed, 2 & 4 WD | 20 min | |
| 2001 - 2002 | Chevrolet, Pickup, Silverado, 1500 HD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 2003 - 2005 | Chevrolet, Pickup, Silverado, 1500 HD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 2003 - 2005 | Chevrolet, Pickup, Silverado, 1500 LD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 2003 - 2005 | Chevrolet, Pickup, Silverado, 1500 LD 8 ft. Bed, 2 & 4 WD | 20 min | |
| 2003 - 2004 | Chevrolet, Pickup, Silverado, 2500 LD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 2003 - 2004 | Chevrolet, Pickup, Silverado, 2500 LD 8 ft. Bed, 2 & 4 WD | 20 min | |
| 2004 - 2005 | Chevrolet, Pickup, Silverado, 1500 LD 5.8 ft. Bed, 2 & 4 WD | 20 min | |
| 2006 | Chevrolet, Pickup, Silverado, 1500 HD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 2006 | Chevrolet, Pickup, Silverado, 1500 LD 5.8 ft. Bed, 2 & 4 WD | 20 min | |
| 2006 | Chevrolet, Pickup, Silverado, 1500 LD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 2006 | Chevrolet, Pickup, Silverado, 1500 LD 8 ft. Bed, 2 & 4 WD | 20 min | |
| 2007 | Chevrolet, Pickup, Silverado, 1500 HD 6.6 ft. Bed, 2 & 4 WD (Classic) | 20 min | |
| 2007 | Chevrolet, Pickup, Silverado, 1500 LD 5.8 ft. Bed, 2 & 4 WD (Classic) | 20 min | |
| 2007 | Chevrolet, Pickup, Silverado, 1500 LD 6.6 ft. Bed, 2 & 4 WD (Classic) | 20 min | |
| 2007 | Chevrolet, Pickup, Silverado, 1500 LD 8 ft. Bed, 2 & 4 WD (Classic) | 20 min | |
| 1999 - 2002 | GMC, Pickup, Sierra, 1500 LD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 1999 - 2002 | GMC, Pickup, Sierra, 1500 LD 8 ft. Bed, 2 & 4 WD | 20 min | |
| 1999 - 2002 | GMC, Pickup, Sierra, 2500 LD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 1999 - 2002 | GMC, Pickup, Sierra, 2500 LD 8 ft. Bed, 2 & 4 WD | 20 min | |
| 2001 - 2002 | GMC, Pickup, Sierra, 1500 HD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 2003 - 2005 | GMC, Pickup, Sierra, 1500 HD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 2003 - 2005 | GMC, Pickup, Sierra, 1500 LD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 2003 - 2005 | GMC, Pickup, Sierra, 1500 LD 8 ft. Bed, 2 & 4 WD | 20 min | |
| 2003 - 2004 | GMC, Pickup, Sierra, 2500 LD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 2003 - 2004 | GMC, Pickup, Sierra, 2500 LD 8 ft. Bed, 2 & 4 WD | 20 min | |
| 2004 - 2005 | GMC, Pickup, Sierra, 1500 LD 5.8 ft. Bed, 2 & 4 WD | 20 min | |
| 2006 | GMC, Pickup, Sierra, 1500 HD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 2006 | GMC, Pickup, Sierra, 1500 LD 5.8 ft. Bed, 2 & 4 WD | 20 min | |
| 2006 | GMC, Pickup, Sierra, 1500 LD 6.6 ft. Bed, 2 & 4 WD | 20 min | |
| 2006 | GMC, Pickup, Sierra, 1500 LD 8 ft. Bed, 2 & 4 WD | 20 min | |
| 2007 | GMC, Pickup, Sierra, 1500 HD 6.6 ft. Bed, 2 & 4 WD (Classic) | 20 min | |
| 2007 | GMC, Pickup, Sierra, 1500 LD 5.8 ft. Bed, 2 & 4 WD (Classic) | 20 min | |
| 2007 | GMC, Pickup, Sierra, 1500 LD 6.6 ft. Bed, 2 & 4 WD (Classic) | 20 min | |
| 2007 | GMC, Pickup, Sierra, 1500 LD 8 ft. Bed, 2 & 4 WD (Classic) | 20 min |
Fitment Guide
Warranty
Limited Lifetime Warranty. Cequent Performance Products, Inc. warrants to the original consumer purchaser only that the product will be free from material defects in both material and workmanship, ordinary wear and tear excepted; provided that installation and use of the product is in accordance with product instructions.
