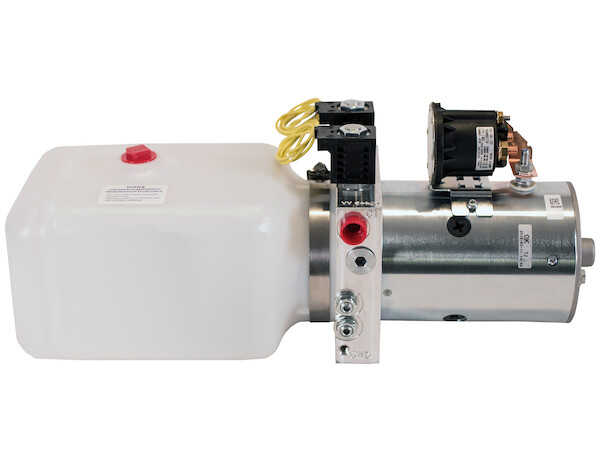

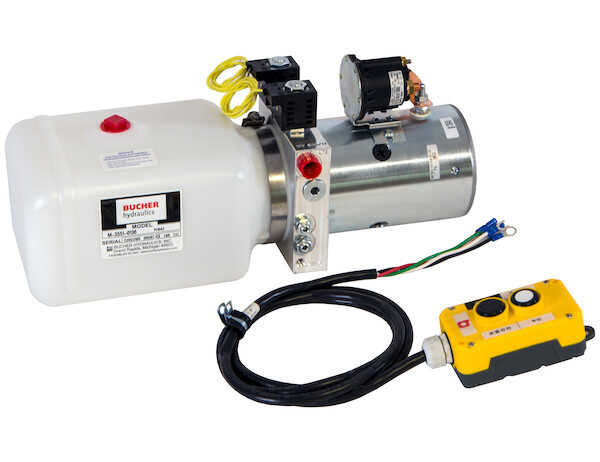

PU642 POWER UNIT HYDRAULIC 12V DC
+ Tap or click image to enlarge
$508.13
$813.00
SKU PU642
Product Details
POWER UNIT HYDRAULIC 12V DC
Manual Or Push Button Push Button
Mounting Position Horizontal
Reservoir Material Glass Filled Nylon
Motor Horsepower 2 HP
Reservoir Volume 0.86 Gal
Pressure Rating 2500 PSI
Motor Voltage 12 VDC
Width 6.60 "
Length 17.38 "
Height 7.50 "
Spool Action Power Up/Power Down
Number Of Cartridge Valves 2
Outlet Port Size 3/8 NPT
Controller Included? Y
Control Cable Length 72 "
Motor Power (KW) 1.5
Specifications
| Part # | PU642 |
| Description | 5-1/2" x 61/2" x 10" Poly Reservoir - .86 Gallon Useable (199 in3) |
| Weight | 39 lbs. |
