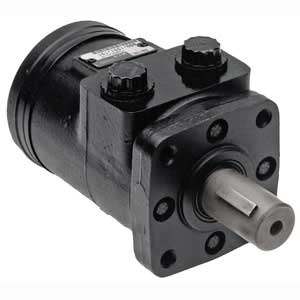

HYDRAULIC MOTOR 2 BOLT 24.9 CU IN
+ Tap or click image to enlarge
$241.15
$385.84
SKU CM092P
Product Details
- Flow (Continuous) 20 GPM
- Input Mount Type 2 Bolt
- Material Cast Iron
- Maximum Case Pressure (Without Case Drain) 1500 PSI
- Maximum Speed (Continuous) 152 RPM
- Pilot Diameter 3.25 "
- Shaft Keyway 0.25 "
- Shaft Type Straight
- Displacement 24.9 in.²
- Flow (Intermittent) 25 GPM
- Torque Rating (Continuous) 2920 Inch Pound
- Torque Rating (Intermittent) 3900 Inch Pound
- Port Size 1/2 NPT
- Shaft Size 1.00 "
- Maximum Speed At Continuous Flow 152 RPM
- Maximum Speed At Intermittent Flow 130 RPM
- Minimum Starting Torque (Continuous Pressure) 3130 Inch Pound
- Minimum Starting Torque (Intermittent Pressure) 3900 Inch Pound
- Pressure Δ Bar (Continuous) 1050 PSI
- Pressure Δ Bar (Intermittent) 1350 PSI
Specifications
OEM:
White: 200400A1015
