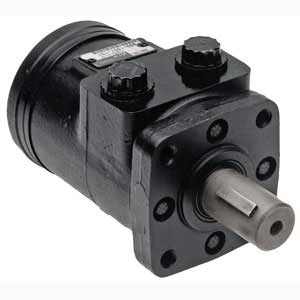

HYDRAULIC MOTOR, 2 BOLT 23.6 CIPR
+ Tap or click image to enlarge
$212.39
$339.80
SKU CM082P
Product Details
- Compares To 101-1032-009
- Flow (Continuous) 15 GPM
- Input Mount Type 2 Bolt
- Material Cast Iron
- Maximum Case Pressure (Without Case Drain) 1500 PSI
- Maximum Speed (Continuous) 192 RPM
- Pilot Diameter 3.25 "
- Shaft Keyway 0.25 "
- Shaft Type Straight
- Displacement 17.9 in.²
- Flow (Intermittent) 20 GPM
- Torque Rating (Continuous) 3110 Inch Pound
- Torque Rating (Intermittent) 3610 Inch Pound
- Port Size 1/2 NPT
- Shaft Size 1.00 "
- Maximum Speed At Continuous Flow 192 RPM
- Maximum Speed At Intermittent Flow 203 RPM
- Minimum Starting Torque (Continuous Pressure) 2920 Inch Pound
- Minimum Starting Torque (Intermittent Pressure) 3610 Inch Pound
- Pressure Δ Bar (Continuous) 1250 PSI
- Pressure Δ Bar (Intermittent) 1500 PSI
