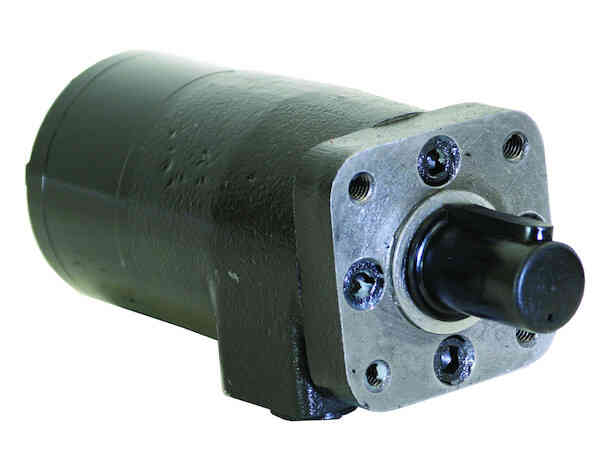

HYDRAULIC MOTOR,4-BOLT, 19 CIPR

Product Details

• Compares To 101-1007-009
• Flow (Continuous) 15 GPM
• Input Mount Type 4 Bolt
• Material Cast Iron
• Maximum Case Pressure (Without Case Drain) 1500 PSI
• Maximum Speed (Continuous) 192 RPM
• Pilot Diameter 1.75 "
• Shaft Keyway 0.25 "
• Shaft Type Straight
• Displacement 17.9 in.²
• Flow (Intermittent) 20 GPM
• Torque Rating (Continuous) 3110 Inch Pound
• Torque Rating (Intermittent) 3430 Inch Pound
• Port Size 1/2 NPT
• Shaft Size 1.00 "
• Maximum Speed At Continuous Flow 192 RPM
• Maximum Speed At Intermittent Flow 256 RPM
• Minimum Starting Torque (Continuous Pressure) 2500 Inch Pound
• Minimum Starting Torque (Intermittent Pressure) 3430 Inch Pound
• Pressure Δ Bar (Continuous) 1350 PSI
• Pressure Δ Bar (Intermittent) 1800 PSI

Specifications

OEM:

Meyer: 60295

Meyer: 62452

Flink: 462L

Char-Lynn: 101-1007

Swenson: 04101-042-00
