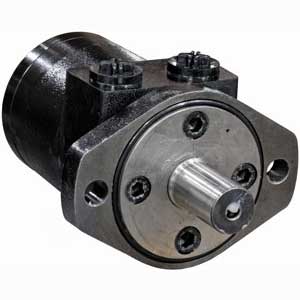

HYDRAULIC MOTOR 4 BOLT 9.5 CIPR
+ Tap or click image to enlarge
$191.26
$306.00
SKU CM044P
Product Details
- Compares To 101-1004-009
- Flow (Continuous) 15 GPM
- Input Mount Type 4 Bolt
- Material Cast Iron
- Maximum Case Pressure (Without Case Drain) 1500 PSI
- Maximum Speed (Continuous) 353 RPM
- Pilot Diameter 1.75 "
- Shaft Keyway 0.25 "
- Shaft Type Straight
- Displacement 9.7 in.²
- Flow (Intermittent) 20 GPM
- Torque Rating (Continuous) 2059 Inch Pound
- Torque Rating (Intermittent) 2320 Inch Pound
- Port Size 1/2 NPT
- Shaft Size 1.00 "
- Maximum Speed At Continuous Flow 353 RPM
- Maximum Speed At Intermittent Flow 471 RPM
- Minimum Starting Torque (Continuous Pressure) 1650 Inch Pound
- Minimum Starting Torque (Intermittent Pressure) 2320 Inch Pound
- Pressure Δ Bar (Continuous) 1650 PSI
- Pressure Δ Bar (Intermittent) 2250 PSI
