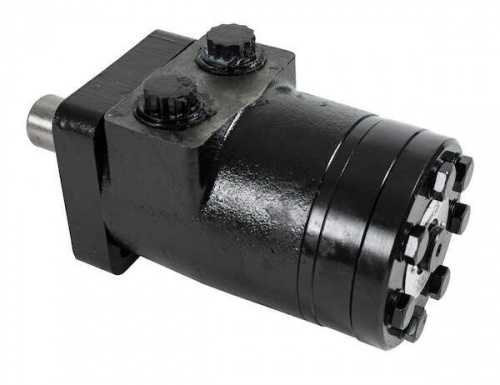

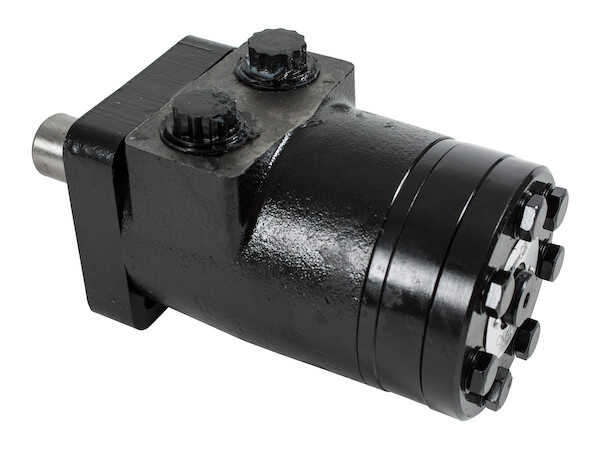

HYDRAULIC MOTOR 7.2 CIPR, 4 BOLT

Product Details

Replacement 17.9 CIR Hydraulic Auger Motor For SaltDogg® Spreader

• Compares To 101-1755-009
• Flow (Continuous) 15 GPM
• Input Mount Type 4 Bolt
• Material Cast Iron
• Maximum Case Pressure (Without Case Drain) 1500 PSI
• Maximum Speed (Continuous) 585 RPM
• Pilot Diameter 1.75 "
• Shaft Keyway 0.25 "
• Shaft Type Straight
• Displacement 7.3 in.²
• Flow (Intermittent) 18 GPM
• Torque Rating (Continuous) 1100 Inch Pound
• Torque Rating (Intermittent) 1510 Inch Pound
• Port Size 1/2 NPT
• Shaft Size 1.00 "
• Maximum Speed At Continuous Flow 585 RPM
• Maximum Speed At Intermittent Flow 702 RPM
• Minimum Starting Torque (Continuous Pressure) 1100 Inch Pound
• Minimum Starting Torque (Intermittent Pressure) 1510 Inch Pound
• Pressure Δ Bar (Continuous) 1800 PSI
• Pressure Δ Bar (Intermittent) 2400 PSI
