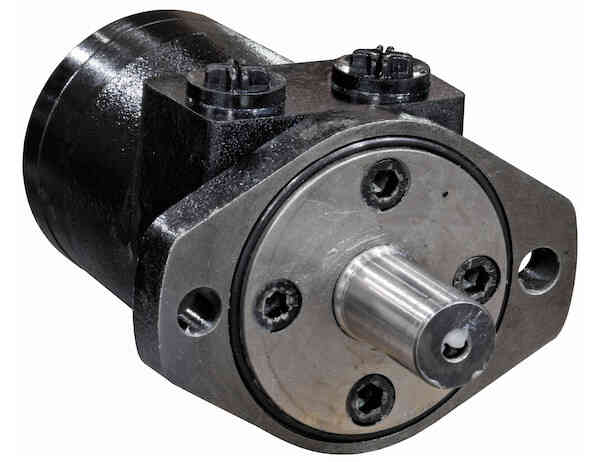

HYDRAULIC MOTOR 2 BOLT 7.2 CIPR
+ Tap or click image to enlarge
$201.04
$321.66
SKU CM032P
Product Details
- Compares To 101-1706-009
- Flow (Continuous) 15 GPM
- Input Mount Type 2 Bolt
- Material Cast Iron
- Maximum Case Pressure (Without Case Drain) 1500 PSI
- Maximum Speed (Continuous) 585 RPM
- Pilot Diameter 3.25 "
- Shaft Keyway 0.25 "
- Shaft Type Straight
- Displacement 7.3 in.²
- Flow (Intermittent) 18 GPM
- Torque Rating (Continuous) 1100 Inch Pound
- Torque Rating (Intermittent) 1510 Inch Pound
- Port Size 1/2 NPT
- Shaft Size 1.00 "
- Maximum Speed At Continuous Flow 585 RPM
- Maximum Speed At Intermittent Flow 702 RPM
- Minimum Starting Torque (Continuous Pressure) 1100 Inch Pound
- Minimum Starting Torque (Intermittent Pressure) 1510 Inch Pound
- Pressure Δ Bar (Continuous) 1800 PSI
- Pressure Δ Bar (Intermittent) 2400 PSI
