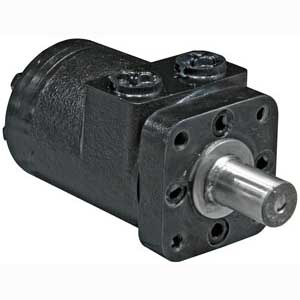

HYDRAULIC MOTOR 4 BOLT 4.75 CIPR
+ Tap or click image to enlarge
$185.84
$297.34
SKU CM014P
Product Details
- Compares To 101-1002-009
- Flow (Continuous) 15 GPM
- Input Mount Type 4 Bolt
- Material Cast Iron
- Maximum Case Pressure (Without Case Drain) 1500 PSI
- Maximum Speed (Continuous) 760 RPM
- Pilot Diameter 1.75 "
- Shaft Keyway 0.25 "
- Shaft Type Straight
- Displacement 4.5 in.²
- Flow (Intermittent) 18 GPM
- Torque Rating (Continuous) 1044 Inch Pound
- Torque Rating (Intermittent) 1150 Inch Pound
- Port Size 1/2 NPT
- Shaft Size 1.00 "
- Maximum Speed At Continuous Flow 760 RPM
- Maximum Speed At Intermittent Flow 912 RPM
- Minimum Starting Torque (Continuous Pressure) 840 Inch Pound
- Minimum Starting Torque (Intermittent Pressure) 1150 Inch Pound
- Pressure Δ Bar (Continuous) 1800 PSI
- Pressure Δ Bar (Intermittent) 2400 PSI
