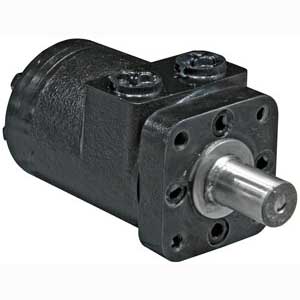

HYDRAULIC MOTOR 2 BOLT 4.75 CIPR

Product Details

• Compares To 101-1026-009
• Flow (Continuous )15 GPM
• Input Mount Type 2 Bolt
• Material Cast Iron
• Maximum Case Pressure (Without Case Drain) 1500 PSI
• Maximum Speed (Continuous) 760 RPM
• Pilot Diameter 3.25 "
• Shaft Keyway 0.25 "
• Shaft Type Straight
• Displacement 4.5 in.²
• Flow (Intermittent) 18 GPM
• Torque Rating (Continuous) 1044 Inch Pound
• Torque Rating (Intermittent) 1150 Inch Pound
• Port Size 1/2 NPT
• Shaft Size 1.00 "
• Maximum Speed At Continuous Flow 760 RPM
• Maximum Speed At Intermittent Flow 912 RPM
• Minimum Starting Torque (Continuous Pressure) 840 Inch Pound
• Minimum Starting Torque (Intermittent Pressure) 1150 Inch Pound
• Pressure Δ Bar (Continuous) 1800 PSI
• Pressure Δ Bar (Intermittent) 2400 PSI

CHAR-LYNN # 101-1034-009

MADE NEED TO CHANGE PORT FITTINGS (THIS MOTOR IS NPT)

Specifications

OEM: C-101-1026
