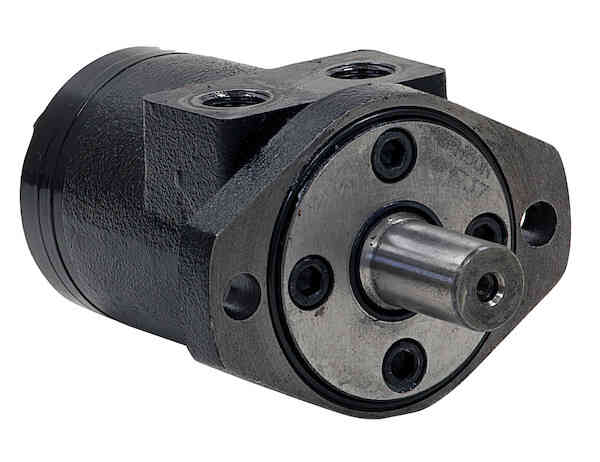

HYDRAULIC MOTOR 2 BOLT 3.17 CIPR
+ Tap or click image to enlarge
HYDRAULIC MOTOR 2 BOLT 3.17 CIPR
$173.39
$277.40
SKU CM002P
Product Details
- Compares To 101-1025-009
- Flow (Continuous) 12 GPM
- Input Mount Type 2 Bolt
- Material Cast Iron
- Maximum Case Pressure (Without Case Drain) 1500 PSI
- Maximum Speed (Continuous) 969 RPM
- Pilot Diameter 3.25 "
- Shaft Keyway 0.25 "
- Shaft Type Straight
- Displacement 2.8 in.²
- Flow (Intermittent) 14 GPM
- Torque Rating (Continuous) 650 Inch Pound
- Torque Rating (Intermittent) 720 Inch Pound
- Port Size 1/2 NPT
- Shaft Size 1.00 "
- Maximum Speed At Continuous Flow 969 RPM
- Maximum Speed At Intermittent Flow 1130 RPM
- Minimum Starting Torque (Continuous Pressure) 520 Inch Pound
- Minimum Starting Torque (Intermittent Pressure) 720 Inch Pound
- Pressure Δ Bar (Continuous) 1800 PSI
- Pressure Δ Bar (Intermittent) 2400 PSI
