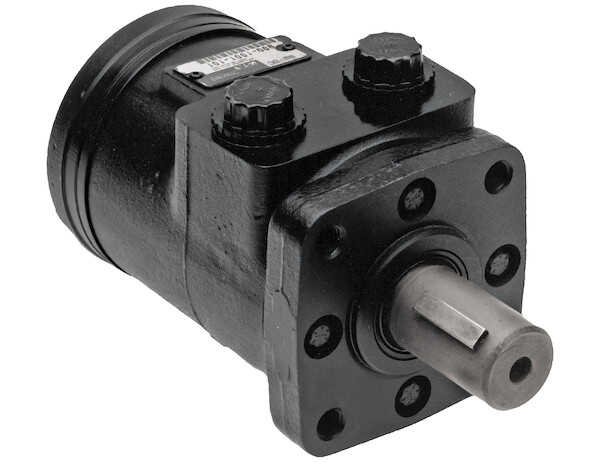

HYDRAULIC MOTOR 4 BOLT 17.9 CIPR
+ Tap or click image to enlarge
$522.69
$836.30
SKU HM074P
Product Details
- Flow (Continuous) 15 GPM
- Input Mount Type 4 Bolt
- Material Cast Iron
- Maximum Case Pressure (Without Case Drain) 1500 PSI
- Maximum Speed (Continuous) 192 RPM
- Pilot Diameter 1.75 "
- Shaft Keyway 0.25 "
- Shaft Type Straight
- Displacement 17.9 in.²
- Flow (Intermittent) 20 GPM
- Torque Rating (Continuous) 3110 Inch Pound
- Torque Rating (Intermittent) 3430 Inch Pound
- Port Size 1/2 NPT
- Shaft Size 1.00 "
- Maximum Speed At Continuous Flow 192 RPM
- Maximum Speed At Intermittent Flow 256 RPM
- Minimum Starting Torque (Continuous Pressure) 2500 Inch Pound
- Minimum Starting Torque (Intermittent Pressure) 3430 Inch Pound
- Pressure Δ Bar (Continuous) 1350 PSI
- Pressure Δ Bar (Intermittent) 1800 PSI
Specifications
OEM:
Meyer: 60295
Meyer: 62452
Flink: 462L
Char-Lynn: 101-1007
Swenson: 04101-042-00
Prince: ADM3004RP
White: RS-18-0301
Ross: MG-18-13-10
