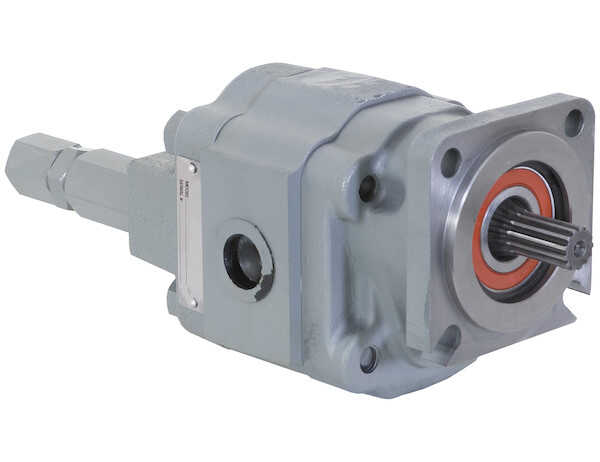

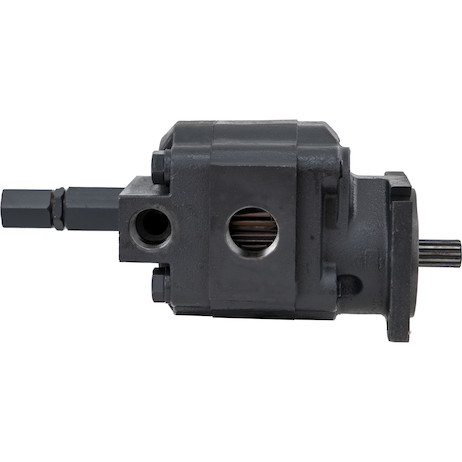

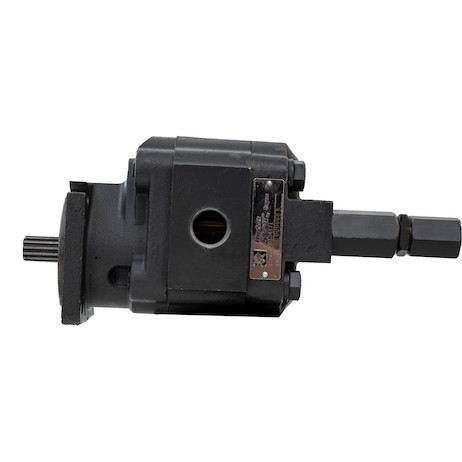

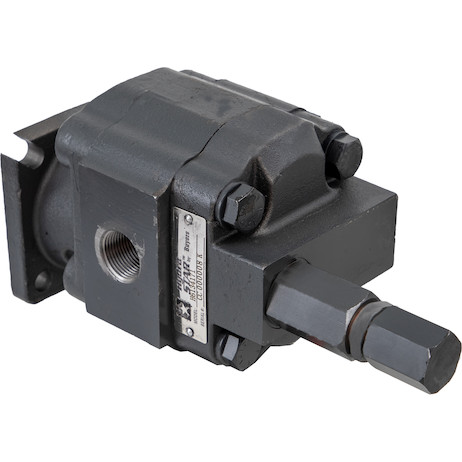

HYDRAULIC PUMP FOR LIVE FLOOR

Product Details

Hydraulic Pump For Live Floor

Displacement 3 in.³/r

Displacement 18 GPM

Gear Width 1.750 "

Input Mount Type Integral Bracket

Material Cast Iron

Mount Type SAE B 4 Bolt

Pilot Diameter 4.00 "

Shaft Size 7/8-13

Shaft Type Splined

Ports (Rear/Side) Side

Inlet Port Size 1 1/2 NPT

Maximum Pressure 3000 PSI

Direct Or Remote Mount Direct Mount

Outlet Port Size 1 1/4 NPT

Rotation Counterclockwise

Gear Size 2.50 "

Flow At 600 RPM 14.52 GPM

Flow At 1000 RPM 18 GPM

Flow At 1800 RPM 43.56 GPM

Flow At 900 RPM 21.78 GPM

Flow At 1200 RPM 21.80 GPM

Flow At 1500 RPM 27.00 GPM

Flow At 2100 RPM 50.82 GPM

Specifications
