PUMP CCW 4BOLT SAE B 6.0 CIR
+ Tap or click image to enlarge
$525.31
$840.50
SKU H5134251
Product Details

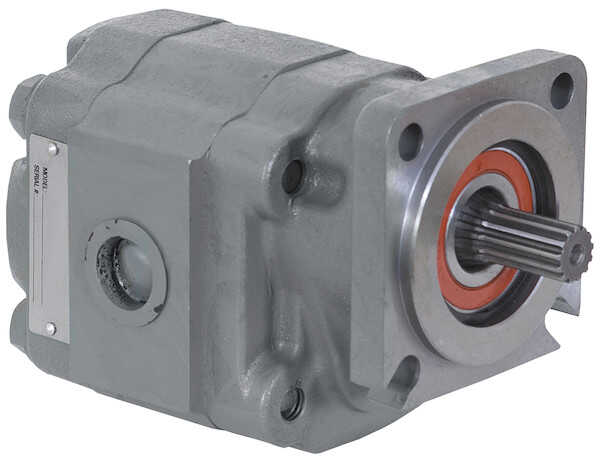

PUMP Counter Clockwise Rotation 4 BOLT SAE B 6.0 CIR
- Displacement 6 in.³/r
- Displacement 24 GPM
- Gear Width 2.500 "
- Input Mount Type Integral Bracket
- Material Cast Iron
- Mount Type SAE B 4 Bolt
- Pilot Diameter 4.00 "
- Shaft Size 7/8-13
- Shaft Type Splined
- Ports (Rear/Side) Side
- Inlet Port Size 1 1/2 NPT
- Maximum Pressure 3000 PSI
- Direct Or Remote Mount Direct Mount
- Outlet Port Size 1 1/2 NPT
- Rotation Counterclockwise
- Gear Size 2.50 "
- Flow At 600 RPM 14.52 GPM
- Flow At 1000 RPM 24 GPM
- Flow At 1800 RPM 43.56 GPM
- Flow At 900 RPM 21.78 GPM
- Flow At 1200 RPM 29. GPM
- Flow At 1500 RPM 36.3 GPM
- Flow At 2100 RPM 50.82 GPM
