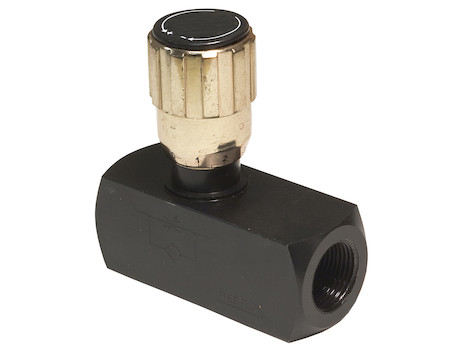

FLOW CONTROL VALVE No.6 ORB

Product Details

These valves provide precise control of flow and shutoff in one direction, and automatically permit full flow in the opposite direction.

A two-step needle allows fine adjustment at low flow by using the first three turns of the adjusting knob; the next three turns open the valve to full flow, and also provide standard throttling adjustments.

The exclusive “Colorflow” color-band reference scale on the valve stem is a great convenience and time-saver in setting the valve originally and in returning it to any previous setting.

Maximum operating pressure
Steel: 400-800 sizes: 5000 PSI; 1200 sizes: 3000 PSI

Cracking pressure, for return check poppet: 5 PSI (0.4 Bar)
Solid Steel Poppet material
