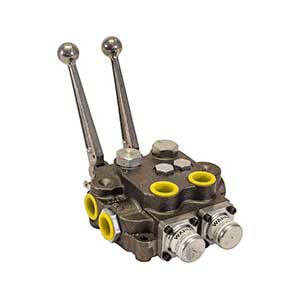

Buyers Directional Control Valve HV211AAGOOD0
+ Tap or click image to enlarge
$359.19
$790.24
SKU HV211AAGOOD0
Product Details
Buyers Directional Control Valve HV211AAGOOD0Specifications
- Number of Spools: 2
- Port Size and Type: All - 3/4" SAE
- Spool Action: 4 way - Spring Center, 4 Way - Spring Center
- Rated working Pressure: 2500 PSI (172 bar)
- Max. Shock and Surge Pressure: 4000 PSI (276 bar)
- Rated Flow Capacity: 30 GPM
- Max. Spool Leakage: (100 PSI) 16 cc/min
- Mounting, Any Position 3 mounting Holes for 3/8" Bolts
- Weight 1 Spool: 13 lbs
-
Integral load holding check valves (prevents reverse flow through valve when shifting)
-
Integral differential poppet type relief valve, adjustable (set @ 2000 PSI, 10 GPM)
-
Balanced, select-fit spools (provide minimum leakage, smooth operation)
-
External spool seals (permit easy replacement, reduced maintenance cost)
-
3/4" NPTF Cyl. 1/2" or 3/4" SAE work ports
