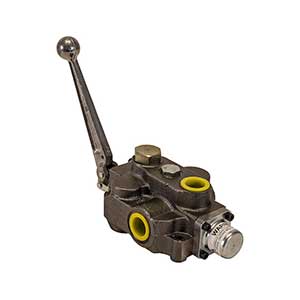

Buyers Directional Control Valve HV11AGOOF0
+ Tap or click image to enlarge
$258.89
$543.68
SKU HV11AGOOF0
Product Details
Buyers Directional Control Valve HV11AGOOF0
- Main Relief Setting 2000 PSI
- Maximum Pressure 3500 PSI
- Power Beyond (Y/N) No
- Spool Action Power Up/Power Down
- Maximum Flow Rate 30 GPM
- Work Port Size 3/4 SAE ORB (-12)
- Inlet Port Size 3/4 SAE ORB (-12)
- Outlet Port Size 1/2 SAE ORB (-8)
- Electrically Operated (Y/N) No
Specifications
- Number of Spools:1
- Port Size and Type: In/Out - 3/4" NPTF Cyl. 1-1/16 SAE #12
- Spool Action: 4 way - Spring Action
- Rated working Pressure: 2500 PSI (172 bar)
- Max. Shock and Surge Pressure: 4000 PSI (276 bar)
- Rated Flow Capacity: 30 GPM
- Max. Spool Leakage: (100 PSI) 16 cc/min
- Mounting, Any Position 3 mounting Holes for 3/8" Bolts
- Weight 1 Spool: 13 lbs
-
Integral load holding check valves (prevents reverse flow through valve when shifting)
-
Integral differential poppet type relief valve, adjustable (set @ 2000 PSI, 10 GPM)
-
Balanced, select-fit spools (provide minimum leakage, smooth operation)
-
External spool seals (permit easy replacement, reduced maintenance cost)
-
3/4" NPTF Cyl. 1/2" or 3/4" SAE work ports
