CENTRAL HYDRAULIC SYSTEM 6 FUNC, 30 GAL, WO/GPS

30 Gallon Central Hydraulic Units
+ Tap or click image to enlarge
30 Gallon Central Hydraulic Units CENTRAL HYDRAULIC SYSTEM 6 FUNC, 30 GAL, WO/GPS 1 CENTRAL HYDRAULIC SYSTEM 6 FUNC, 30 GAL, WO/GPS 2 CENTRAL HYDRAULIC SYSTEM 6 FUNC, 30 GAL, WO/GPS 3

Buyers Products

CENTRAL HYDRAULIC SYSTEM 6 FUNCTION, 30 GAL, WO/GPS
$9,801.00 $15,681.82
SKU 6383060
Out Of Stock - Call For Availability

Product Details

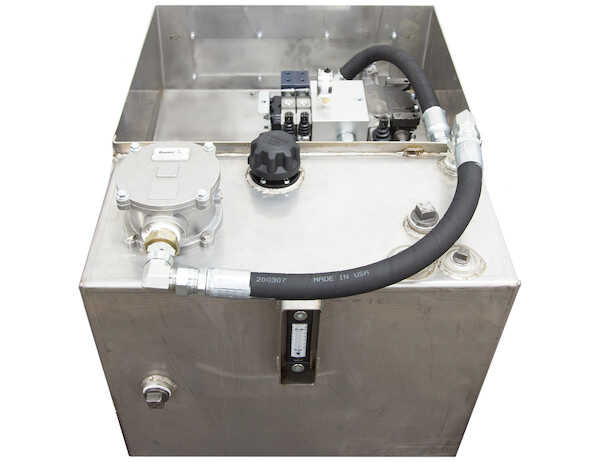

CENTRAL HYDRAULIC SYSTEM 6 FUNCTION, 30 GAL, WITHOUT/GPS



  • Reservoir Volume 30 Gal
  • Reservoir Material 304 Stainless Steel

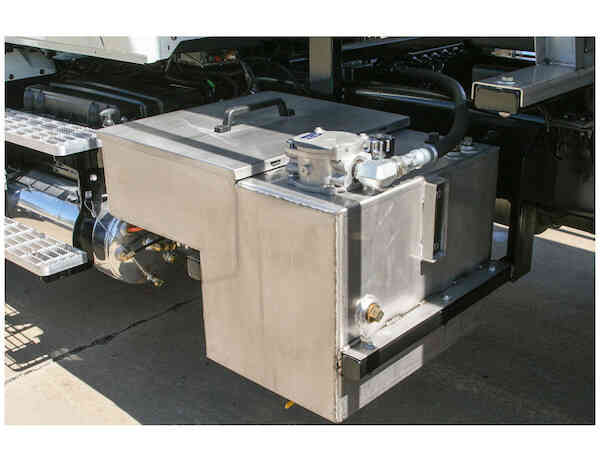

  • Reservoir Mount Position Side Mount
  • Number Of Functions Supported 6
  • Hoist Action Power Up/Power Down - 1 Port Relief
  • Plow Action Power Up/Power Down
  • Spreader Control Included? Yes

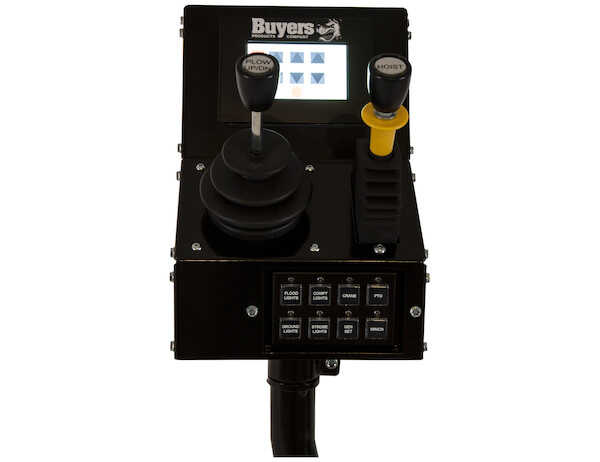

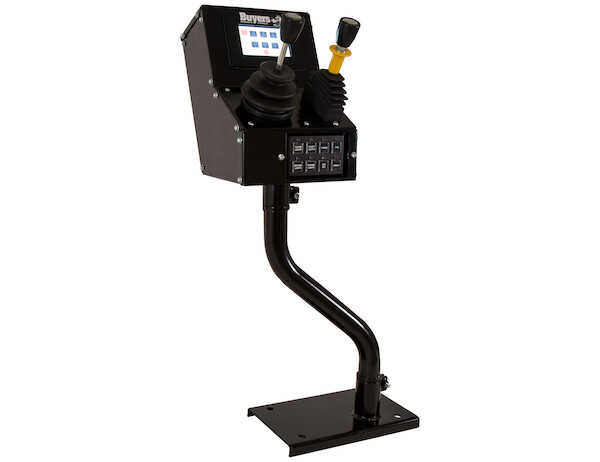

  • Spreader Control Type Electric Over Hydraulic
  • Spreader Controller HVC06T
  • Plow Control Included? Yes
  • Plow Control Type Electric
  • Hoist Control Included? Yes
  • GPS Capable? No
  • GPS Included? No
  • Oil Level/Temperature Gauge Included? Yes
  • Inlet Port 3/4 SAE ORB (-12)
  • Work Ports 1/2 SAE ORB (-8)
  • Outlet Port 2 NPT
  • Suction Port 3/4 SAE ORB (-12)
  • Auger/Chain Port 1/2 SAE ORB (-8)
  • Spinner Port 1/2 SAE ORB (-8)
  • Main Relief Setting 1500 PSI
  • Port Relief Hoist 500 PSI
  • Port Relief Angle 1500 PSI
  • Maximum Flow Rate 28 GPM
  • Maximum Pressure 3000 PSI
  • Return Line Filter Included? Yes
  • Return Line Filter Flow Rating 26 GPM
  • Return Line Filter Rating 25 µm
  • Suction Filter Included? Yes
  • Suction Filter Flow Rating 49 GPM
  • Suction Filter Rating 150 µm
  • Magnetic Drain Plug Yes

30 gallon hydraulic 6 function
